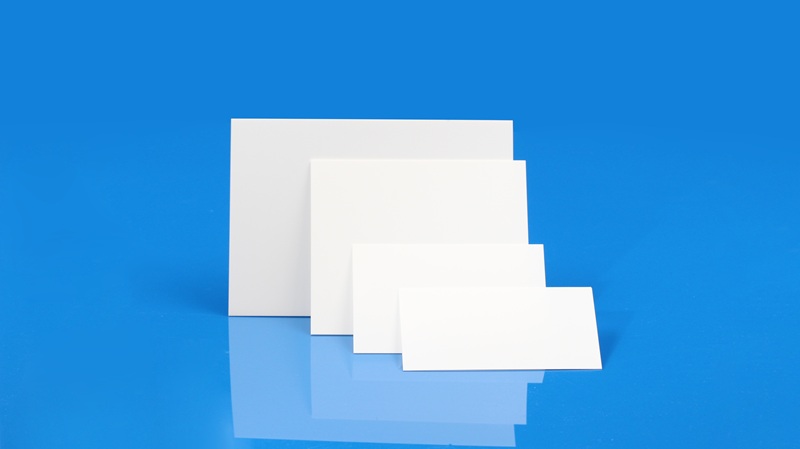

Ceramic substrates are engineered plates made from advanced ceramic materials, onto which copper layers are bonded through specialized processes to form circuit patterns. Owing to their combination of thermal, mechanical, and electrical properties, they are widely used in demanding electronic systems—particularly in power modules for electric and hybrid vehicles.
Key Performance Advantages
1. Thermal performance
Ceramic substrates offer a broad range of thermal conductivity. For example, aluminum nitride (AlN) can reach up to around 170 W/m·K, far exceeding that of conventional substrate materials. This enables efficient heat dissipation and helps prevent overheating-related failures in high-power applications.
2. Low coefficient of thermal expansion (CTE)
Typically, below 8 ppm/K, the CTE of ceramic substrates is well matched to that of semiconductor devices. This reduces thermal stress during operation and contributes to improved reliability and longer service life.
3. High temperature capability
Ceramic substrates maintain stable performance at elevated temperatures, often exceeding 600°C, making them suitable for harsh environments such as automotive and aerospace applications.
Mechanical Properties
– High strength and hardness: Capable of withstanding vibration, impact, and mechanical wear
– Dimensional stability: Maintains precise geometry, reducing the risk of circuit deformation or failure
– Corrosion resistance: Resistant to acids, alkalis, oxidation, and radiation
Electrical Properties
– High insulation strength: Provides effective electrical isolation under high voltage conditions
– Low dielectric loss: Supports high-frequency signal transmission with reduced signal attenuation
– Efficient conductivity: Copper layers enable high current-carrying capacity, improving overall power density and efficiency
Main Applications
Ceramic substrates are widely used in power electronics, especially in electric and hybrid vehicles:
– EV power modules: Applied in inverters, battery management systems (BMS), and drive control units, where they support high-voltage and high-power operation while ensuring thermal management and electrical insulation
– Other applications: Industrial power systems, renewable energy equipment, aerospace components, and communication infrastructure requiring high power density and thermal reliability
Manufacturing Processes and Material Options
Ceramic substrates are typically produced using processes such as DBC (Direct Bonded Copper), AMB (Active Metal Brazing), and DPV, which enable strong bonding between copper and ceramic while maintaining circuit precision.
Common substrate materials include:
1. Alumina (Al₂O₃)
– Thermal conductivity: ~20–30 W/m·K
– Advantages: Cost-effective, widely used, balanced properties
– Limitations: Lower thermal conductivity, less suitable for high-power density applications
2. Aluminum Nitride (AlN)
– Thermal conductivity: up to ~170 W/m·K
– Advantages: Excellent heat dissipation, good CTE match with silicon, high reliability
– Limitations: Higher cost, more demanding processing requirements
3. Silicon Nitride (Si₃N₄)
– Advantages: High flexural strength and fracture toughness, good thermal conductivity, excellent resistance to thermal shock
– Limitations: Higher cost and more complex manufacturing
Conclusion
With the rapid growth of electric vehicles, renewable energy systems, and high-frequency technologies such as 5G, ceramic substrates are becoming increasingly important. Their ability to enhance thermal management, electrical insulation, and structural reliability makes them a key component in modern high-power electronic systems.
