In both industrial heating systems and household gas appliances, the ignition unit plays a critical role in determining start-up reliability, operational safety, and overall equipment lifespan. As performance requirements continue to increase, silicon nitride hot surface igniters are gradually replacing conventional ignition components thanks to their excellent resistance to heat, thermal shock, and corrosive environments.
As a manufacturer specializing in the development and production of silicon nitride hot-surface igniters, we understand the growing importance of reliable ignition technology for modern thermal energy equipment. This article explores the operating principle, structural design, applications, and practical advantages of silicon nitride igniters, while also highlighting their value in industrial boiler systems.
1. Understanding Silicon Nitride Hot Surface Igniters

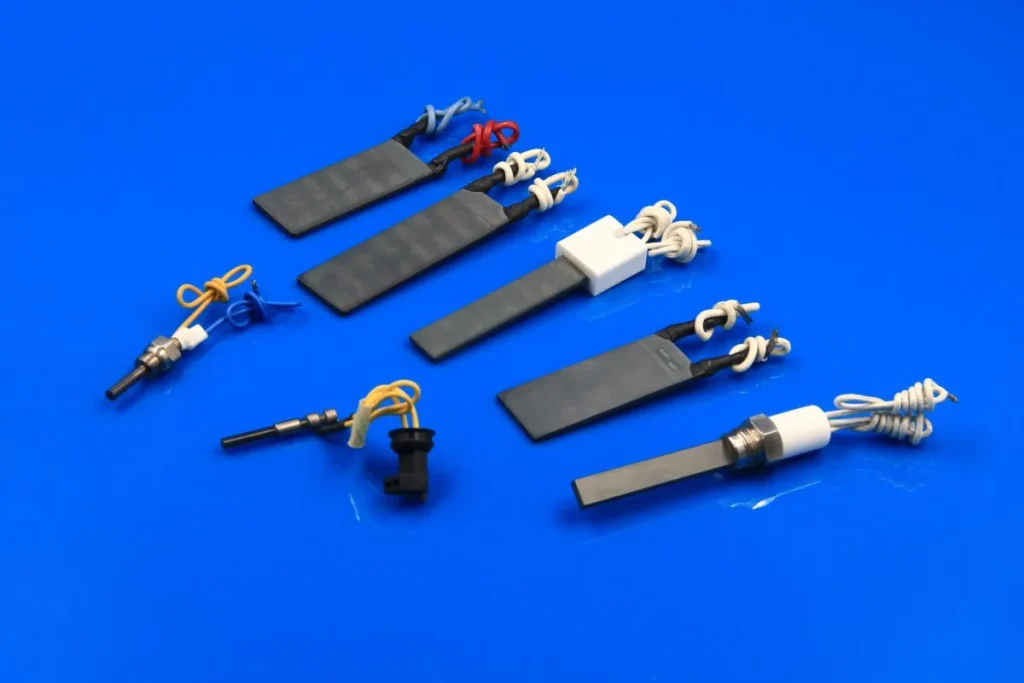

A silicon nitride hot surface igniter is an advanced ignition device that uses silicon nitride ceramic (Si₃N₄) as the primary structural material and heat-transfer medium. The heating section is typically integrated with high-temperature-resistant conductive materials such as tungsten or molybdenum alloys.
Unlike traditional spark ignition systems, hot surface igniters operate by rapidly heating the ceramic surface after electrical power is applied. Once the surface temperature reaches the ignition point of the fuel—typically between 300°C and 800°C depending on the fuel type—the gas ignites immediately upon contact with the heated surface.
This ignition method eliminates the need for high-voltage sparks and provides more stable ignition performance under demanding operating conditions.
Main Structural Components
Silicon Nitride Ceramic Body
The ceramic substrate acts as the core support structure, offering high mechanical strength, excellent electrical insulation, and exceptional thermal shock resistance. Silicon nitride ceramics can maintain long-term stability in environments exceeding 1300°C, greatly reducing the risk of cracking or electrical leakage.
Integrated Heating Element
The internal heating element is produced from high-melting-point conductive materials capable of rapidly generating heat while maintaining long-term operational stability.
Electrodes and Lead Connections
These components ensure stable electrical transmission between the power source and the heating element. High-temperature insulation layers are commonly applied to improve electrical safety and durability.
Compared with conventional spark ignition systems, silicon nitride hot surface igniters are less affected by humidity, oil contamination, or environmental interference, resulting in more reliable ignition performance.
2. Typical Application Areas
With their combination of fast heating, corrosion resistance, and long-term thermal stability, silicon nitride igniters are widely used in modern thermal energy systems across industrial, residential, and commercial applications.
2.1 Industrial Heating Equipment
Industrial Boilers and Furnaces
Gas-fired boilers, oil burners, hot air furnaces, and ceramic kilns often operate in high-temperature and dust-intensive environments. Silicon nitride igniters provide stable ignition performance even under harsh operating conditions.
Industrial Burners
In applications such as metal processing equipment and chemical heating systems, rapid and repeatable ignition is essential. The fast-response capability of silicon nitride igniters helps improve operational efficiency and reduce start-up time.
2.2 Residential Gas Appliances
Gas Water Heaters and Wall-Mounted Boilers
Traditional ignition electrodes can suffer from scaling and contamination caused by gas impurities. Silicon nitride igniters feature smooth ceramic surfaces and strong anti-corrosion properties, helping extend service life while reducing maintenance requirements.
Gas Cooktops and Integrated Cooking Systems
These appliances operate continuously under direct flame exposure. Silicon nitride ceramics maintain structural stability under repeated thermal cycling and are less affected by grease or oil contamination during daily use.
2.3 Commercial Heating Systems
Commercial Kitchen Equipment
Large gas-powered cooking appliances, ovens, and steam equipment often operate under continuous high-temperature conditions. Silicon nitride igniters are well suited for these demanding applications due to their durability and stable ignition performance.
Commercial Heating Units
Heating systems used in hotels, shopping centers, and large facilities require dependable ignition performance in both low- and high-temperature environments. Silicon nitride igniters can operate reliably across a wide temperature range, supporting stable operation even in cold-weather conditions.
3. Industrial Boiler Upgrade Example
In one chemical processing facility, conventional ignition electrodes were replaced with silicon nitride hot surface igniters as part of a boiler system upgrade.
Following implementation, the customer reported several improvements:
- Ignition success rate increased from 85% to nearly 100%
- Replacement interval extended from approximately four months to nearly two years
- Annual maintenance downtime reduced by around 12 hours
- Maintenance and operating costs reduced by more than 40%
The upgrade also minimized safety concerns related to corrosion and electrical leakage commonly associated with traditional ignition systems.
4. Conclusion
From advanced ceramic materials to practical heating system applications, silicon nitride hot surface igniters are helping redefine modern ignition technology. Their combination of rapid heating, thermal durability, and reliable long-term operation makes them an increasingly important solution for industrial boilers, residential gas appliances, and commercial heating systems.
