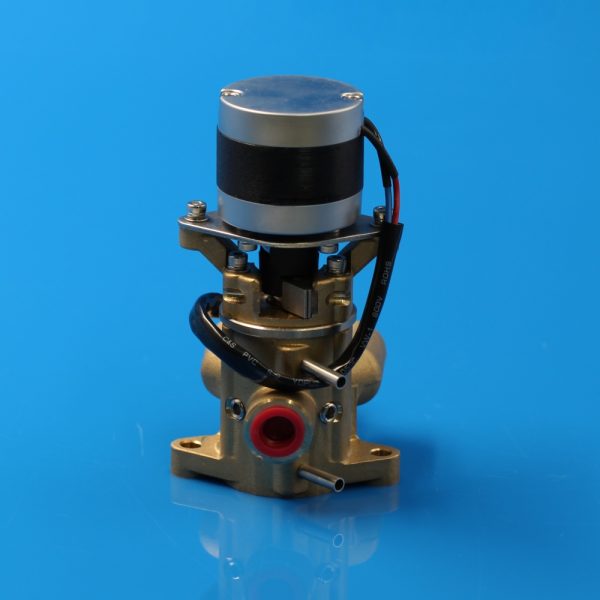

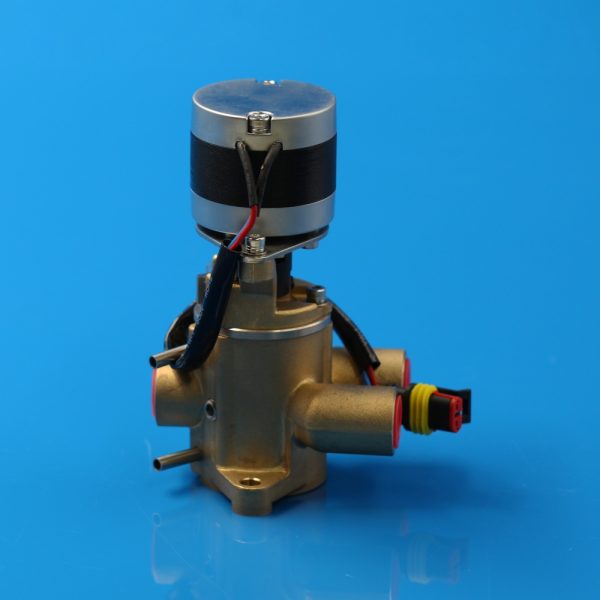

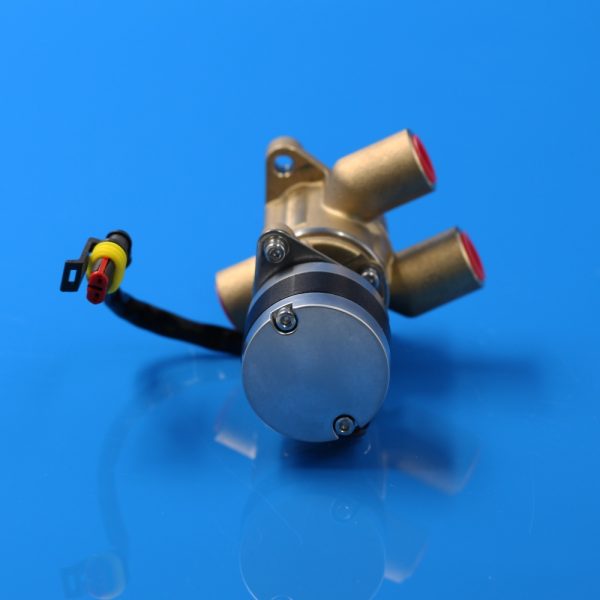

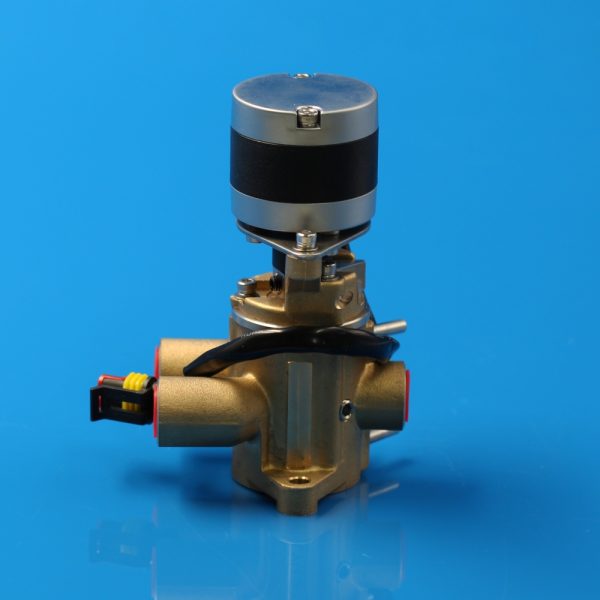

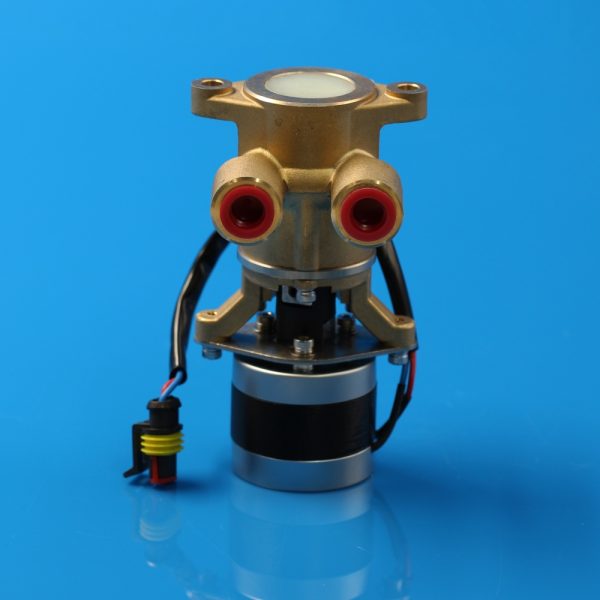

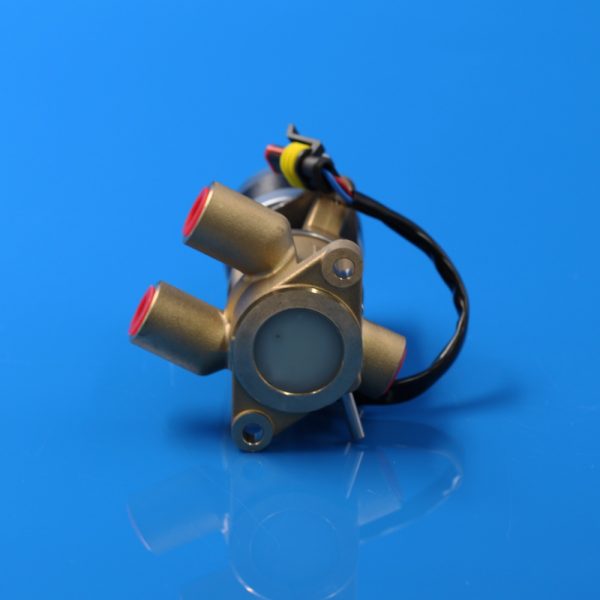

This dual-nozzle water diverter valve assembly is designed for the water distribution system of water jet looms. Driven by an integrated electric motor, the valve switches the pressurized water flow between two nozzle lines, supporting stable and accurately timed weft insertion. The product is supplied as a complete assembly with the valve body, drive motor, wiring and connection ports.
Product Properties
Product Details
The water jet loom dual-nozzle water diverter valve assembly is used to control and switch the pressurized water flow between two weft-insertion nozzles. According to the loom control signal, the integrated motor drives the internal valve mechanism, directing water to the selected nozzle at the required time.
By coordinating the water path with the loom operating cycle, the assembly helps maintain stable water delivery, accurate nozzle switching and reliable weft insertion during continuous weaving. It is suitable for dual-nozzle and multi-color water jet loom systems in which different weft yarns are selected alternately.
The product is supplied as a complete assembly, including the valve body, drive motor, electrical wiring and water connection ports. This integrated structure simplifies replacement and installation while reducing the need to match individual components separately.

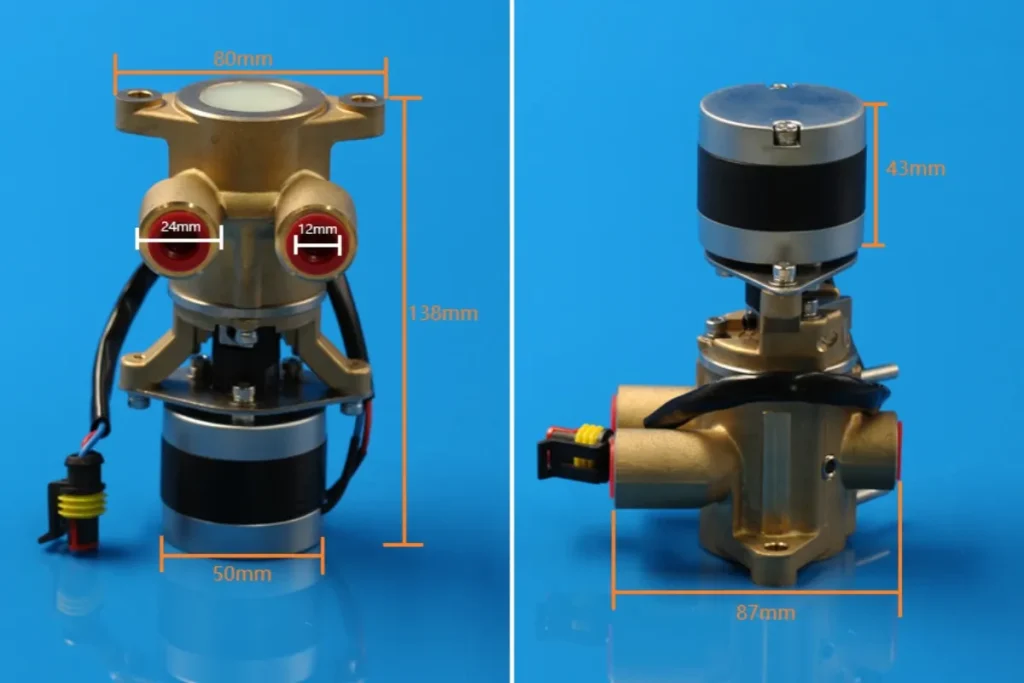

Before ordering, the mounting dimensions, electrical connector, motor voltage, water port size and compatible loom model should be checked against the original assembly.
Key Features
• Designed for dual-nozzle water jet loom systems
• Motor-driven water flow switching
• Directs pressurized water to the selected nozzle
• Supports stable and accurately timed weft insertion
• Complete valve and motor assembly
• Integrated wiring and water connection ports
• Suitable for replacement and maintenance applications
• Compact structure for installation within the loom water system
Main Function
The valve receives a control signal from the water jet loom and switches the pressurized water supply between two nozzle circuits. This allows the loom to select the required nozzle and corresponding weft yarn during the weaving cycle.
Typical Applications
• Dual-nozzle water jet looms
• Two-color weft insertion systems
• Water distribution and switching systems
• Textile weaving machinery replacement parts
• Water jet loom maintenance and repair
Shipping & Customs
Your order may require payment of import duties or other customs clearance fees. Please check the notifications from the logistics company or relevant parties and complete the payment in time to prevent the shipment from being returned.
Frequently Asked Questions
This valve assembly is used in dual-nozzle water jet looms to switch pressurized water between two nozzle lines. The motor drives the internal valve mechanism according to the loom control signal, allowing the selected nozzle to perform weft insertion.
Yes. The product is supplied as a complete assembly, including the water diverter valve, electric drive motor, mounting components, wiring and water connection ports.
It is mainly used in dual-nozzle or two-color water jet loom systems. Because mounting dimensions, connectors, and motor specifications may vary, compatibility should be checked against the original part before ordering.
Please compare the mounting hole positions, valve body dimensions, water inlet and outlet configuration, electrical connector, cable arrangement and motor specifications with the original assembly. A similar appearance does not always indicate full compatibility.
