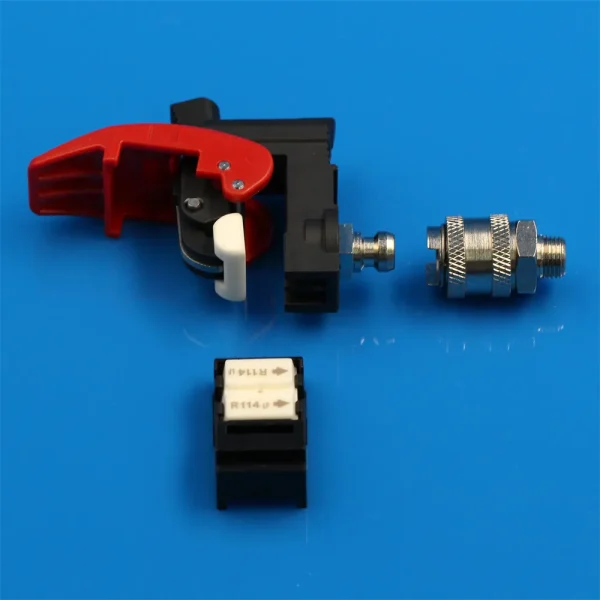

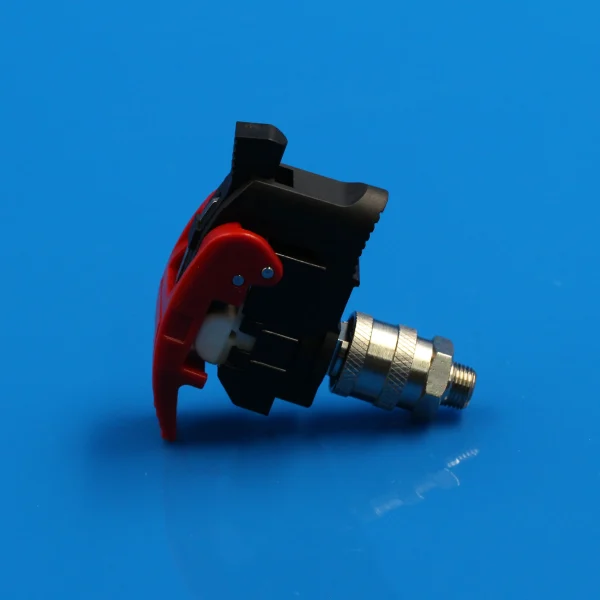

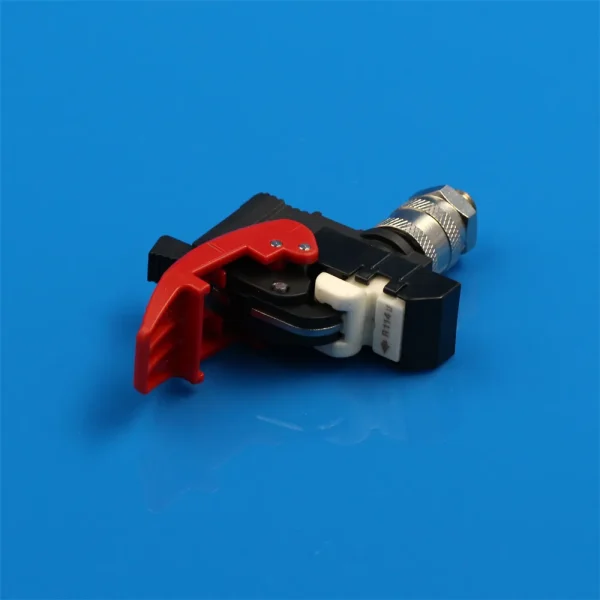

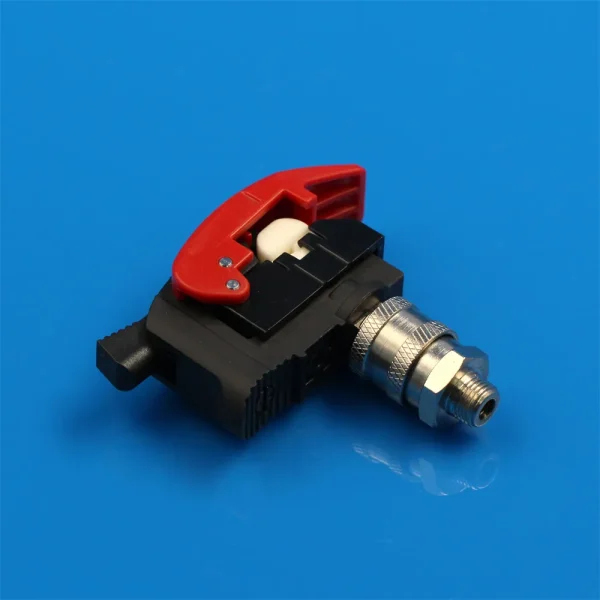

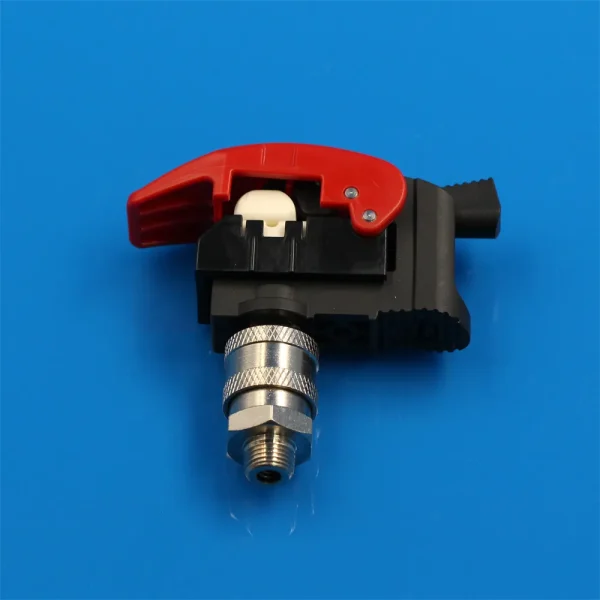

This Ceramic Air Jet Nozzle Complete Set is a core component for DTY (Draw Textured Yarn) False Twist Texturing Machines. The nozzle insert is manufactured using a precision dry-pressing and high-temperature sintering process with Alumina (Al₂O₃), ensuring excellent dimensional consistency, structural uniformity, and long-term operational stability.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Technical Data Sheet (TDS) | INNO-95% Alumina Ceramic Material Properties-SU0627 |
Product Details
This Ceramic Air Jet Nozzle Complete Set is a core component for DTY (Draw Textured Yarn) False Twist Texturing Machines. The nozzle insert is manufactured using a precision dry-pressing and high-temperature sintering process with Alumina (Al₂O₃), ensuring excellent dimensional consistency, structural uniformity, and long-term operational stability.
The air jet mechanically intertwines continuous filaments to create the desired interlaced structure, ensuring optimal yarn tightness, improving winding quality, and minimizing filament and yarn breakage during subsequent processing.
Bore shape options: circular or elliptical, matching network nozzle ceramic design requirements.
| Model NO. | Bore Diamete(mm) | Count Range(D) | Knots | Character of Interlacing (Fastness of knots) |
Remarks |
| INR212LF | 1.2 | 50-100 | 110-120 | High | Low Friction |
| INR213LF | 1.3 | 75-150 | 100-110 | High | Low Friction |
| INR214LF | 1.4 | 130-200 | 90-110 | High | Low Friction |
| INR216LF | 1.6 | 200-350 | 80-100 | High | Low Friction |
| INR218LF | 1.8 | 350-450 | 70-90 | High | Low Friction |
| INR2120LF | 2.0 | 450-600 | 60-80 | High | Low Friction |
Key Features:
- Material & Manufacturing Process:
Produced through precision dry pressing and controlled high-temperature sintering, delivering uniform microstructure, stable density distribution, and reliable mechanical strength. - High Dimensional Accuracy:
The dry-pressed process enables precise control of geometry and air channel structure, ensuring consistent airflow performance. - Precision Air Jet Nozzle:
Provides stable and uniform airflow for consistent filament interlacing and improved yarn structure. - Complete Set:
Supplied as a full assembly for seamless installation on DTY false twist texturing machines. - Stable High-Speed Operation:
Designed to support continuous high-speed production with reliable performance.
Applications:
- DTY False Twist Texturing Machines
- Synthetic filament yarn interlacing
- High-speed textile production lines
Advantages:
- Reduces filament and yarn breakage
- Enhances yarn tightness and winding uniformity
- Excellent structural consistency from dry-pressed Alumina ceramic
- Long-term dimensional stability under continuous operation
- Easy integration with existing DTY systems
Individual components and related parts are also available for separate purchase on our platform. Explore our store for more options.
Frequently Asked Questions
We supply alumina (Al2O3), aluminum nitride (AlN), boron nitride (BN), silicon nitride (Si3N4), zirconia (ZrO2) , beryllia ceramics (BeO), silicon carbide (SiC), boron carbide (B4C), porous ceramics, machinable glass ceramic parts, including crucibles, nozzles, shaft, piston, setter, washer, seals, cutting tool components, insulators, ceramic to metal sealing, metallized ceramics, ceramic heater, ceramic reflector and ceramic filling pump etc.
Key benefits include: extreme hardness, wear/corrosion resistance, high-temperature stability, electrical insulation, and bio-compatibility, ideal for harsh industrial environments.
Yes. We offer CNC machining, ceramic injection molding, cold isostatic pressing, hot pressing, dry pressing and casting to produce non-standard parts based on your drawings or samples.
Different products have different MOQ, if you have mass production in future, we can discuss MOQ again to meet your requirement.
Our products meet ISO 9001:2015 and IATF16949 standards. Material COA (Certificate of Analysis) and mechanical test reports (e.g., hardness, density, flexural strength) are available.
Standard tolerance is ISO2768-M. Precision machining can reach ±0.001mm (depending on material and design).
Standard parts: 1-7 days; Custom parts: 30-60 days (complex designs require additional evaluation).
We use two or three layer protection: shock-absorbing foam + reinforced cartons or shock-absorbing foam + individual blister boxes + reinforced cartons. Fragile labels are applied for delicate parts.
Yes. Provide your application conditions (temperature/medium/pressure/load), and our engineers will recommend the optimal material solution.
Report the issue within 7 days with photos/videos. Verified defects will be replaced or refunded at no cost.
Yes. Contact our email info@innovasupplies.com to get more details about offline orders. For corporate transfers, provide full company name and tax ID for VAT invoice issuance.
Yes, for large orders, we can discuss by offline through email.
Returns are accepted if:
– Received incorrect product model/specification
– Manufacturing defects (non-human damage)
– Unopened packaging & resalable condition (standard parts only)
Claims must be filed within 7 business days after delivery.
Custom orders are non-returnable (unless with critical defects) as they are produced specifically for you. Pre-shipment inspection reports will be provided for approval.
Tours by appointment only. Submit 3 days in advance: company name, visitor position, purpose. Note: Clean-rooms require protective gear.
If you have mass production in future, 1-5 free standard samples are available and you pay the freight cost, custom samples charged at cost.
