The Zirconia full-ceramic outer spherical bearing (UC Type) is designed for high-performance applications requiring self-alignment and smooth, reliable operation. Manufactured with Zirconia (ZrO₂) ceramic inner and outer rings and ceramic balls, combined with a PTFE cage, this bearing provides exceptional durability, chemical resistance, and smooth operation. This bearing is ideal for use in industries such as automated machinery, medical equipment, semiconductor manufacturing, food processing, and aerospace, where traditional bearings may fail due to corrosion, high loads, or misalignment.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Safety Data Sheet (SDS) | ZrO2-MSDS-Innovacera |
| Technical Data Sheet (TDS) | Zirconia Ceramic Material Properties – SU0983 |
Product Details

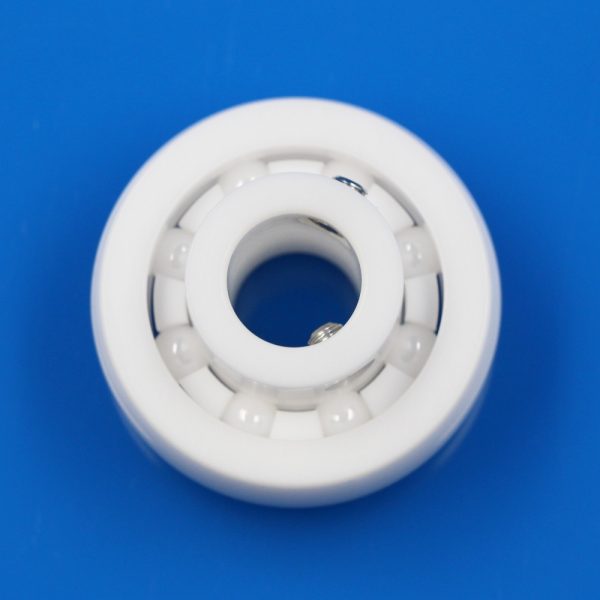

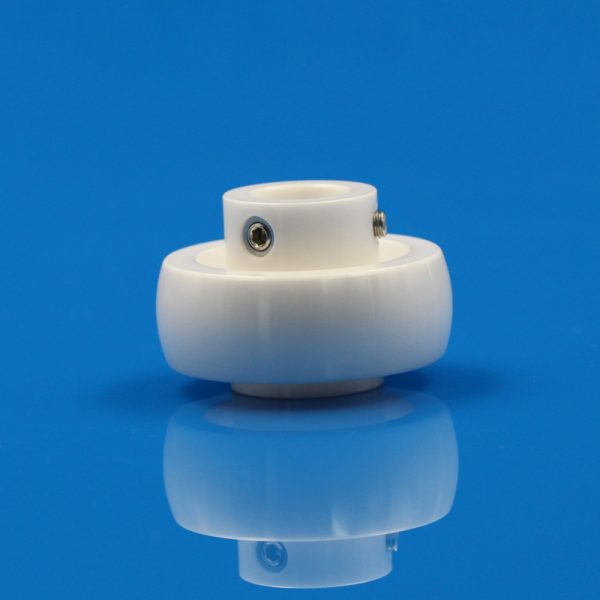

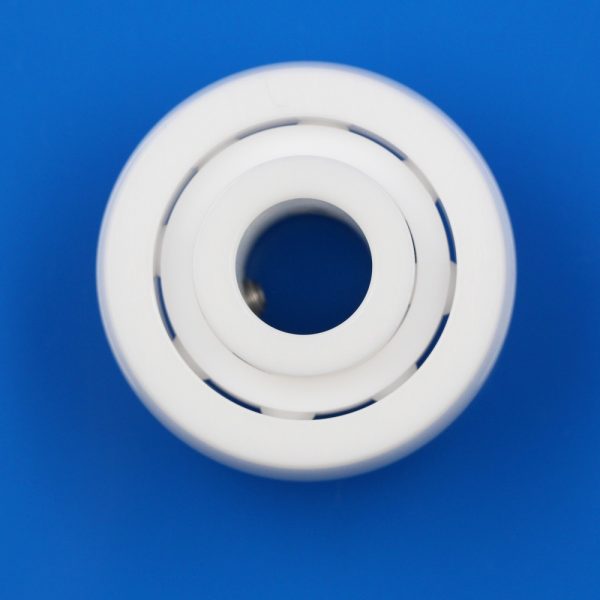

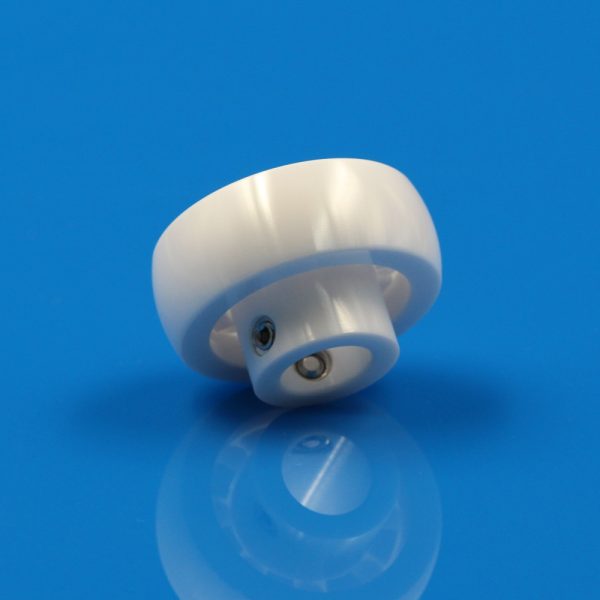

The Zirconia full-ceramic outer spherical bearing (UC Type) is designed for high-performance applications requiring self-alignment and smooth, reliable operation. Manufactured with Zirconia (ZrO₂) ceramic inner and outer rings and ceramic balls, combined with a PTFE cage, this bearing provides exceptional durability, chemical resistance, and smooth operation.
Compared with conventional bearing steel, zirconia ceramic bearings perform significantly better in chemically aggressive and electrically sensitive environments.
| RING | BALL | CAGE | Max working Temp | Anti-corrosion |
| ZrO2 | ZrO2 | PTFE | 180℃ | Excellent |
The PTFE cage offers low friction, good chemical stability, and reliable performance at both high and low temperatures.

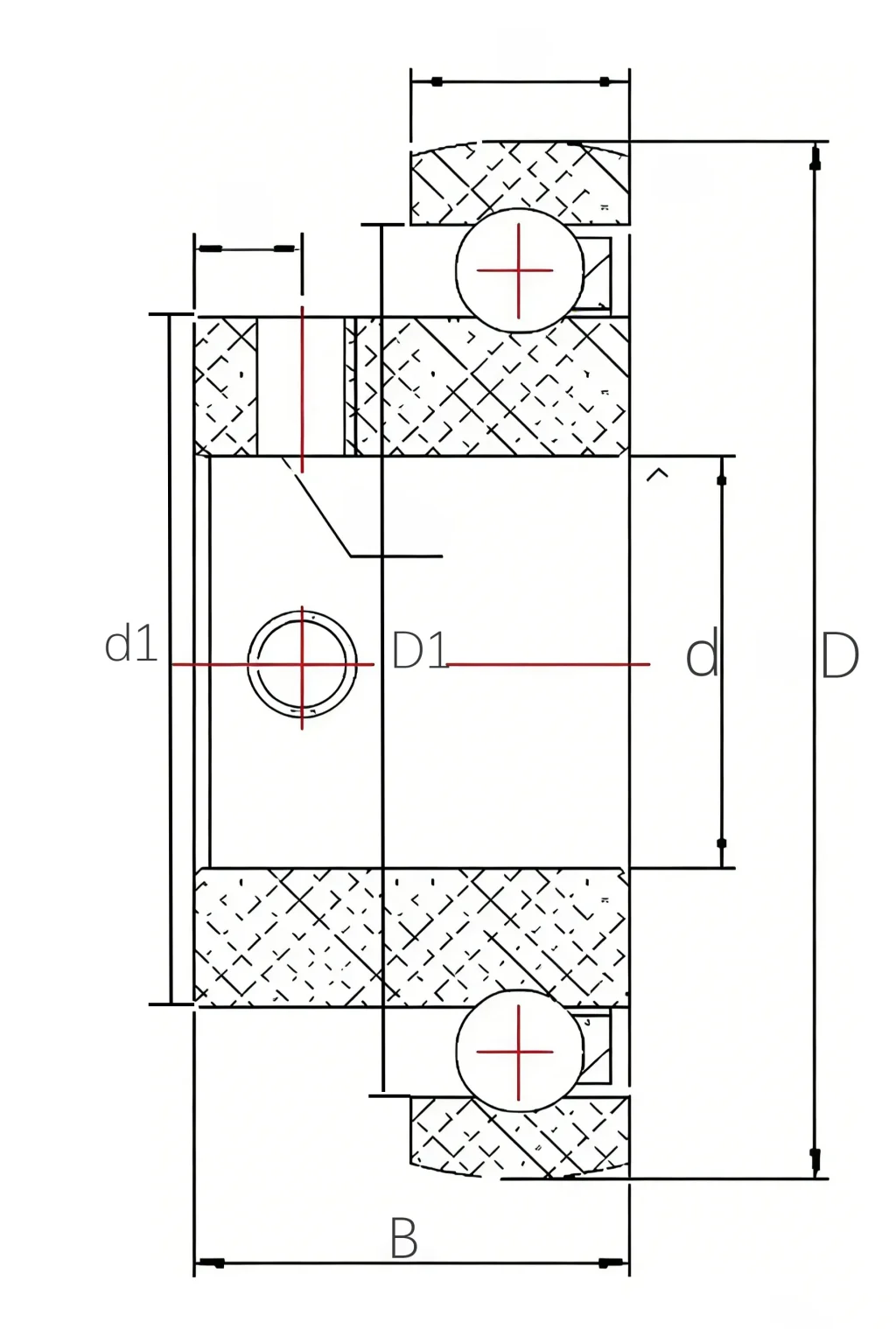

Product Dimensions
| Model | Boundary Dimension | |||||
| Bearing No. |
d | D | B | d1 | D1 |  |
| UC202-9 | 15mm | 47mm | 31mm | 24.4mm | 33.6mm | |
Key features
- Self-lubricating design to reduce friction and enhance longevity
- Full ceramic construction for high corrosion resistance, electrical insulation, and wear resistance
- A mounted spherical design for automatic self-alignment to compensate for misalignment
This bearing is ideal for use in industries such as automated machinery, medical equipment, semiconductor manufacturing, food processing, and aerospace, where traditional bearings may fail due to corrosion, high loads, or misalignment.
Typical Applications
- Semiconductor equipment
- LCD well equipment
- Ectopiating equipment
- Chemical equipment
- Textile machinery
- Medical machinery
Multiple sizes are available to meet different installation requirements.
Frequently Asked Questions
- Lighter weight
- Higher wear and corrosion resistance
- Electrical insulation
- Operates at higher temperatures
- Lower friction and longer service life in precision applications
Yes. Zirconia is chemically inert and biocompatible, making it suitable for chemical, pharmaceutical, and medical applications.
Yes. They offer lower friction and higher stiffness than steel bearings, making them ideal for precision and high-speed machinery.
- Avoid contamination with hard particles
- Use compatible lubricants (ceramic bearings can be used dry in some cases)
- Inspect periodically for wear, especially in high-speed or high-load applications
Yes, but ensure that the bearing housing and lubrication are compatible, and that the load and speed requirements do not exceed ceramic material limits.
