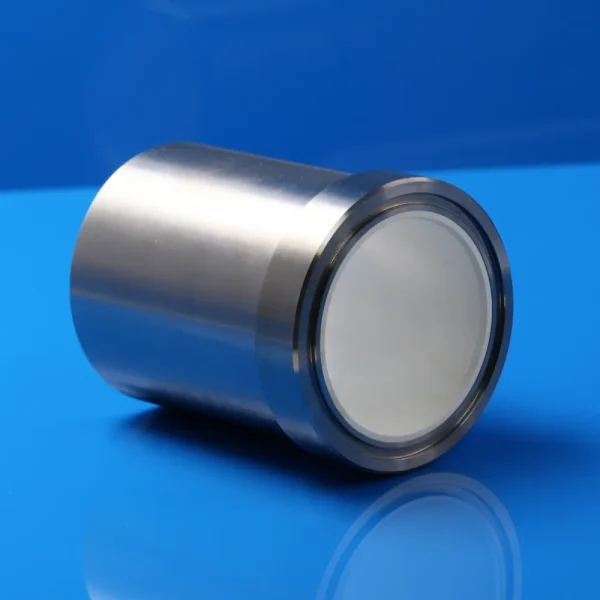

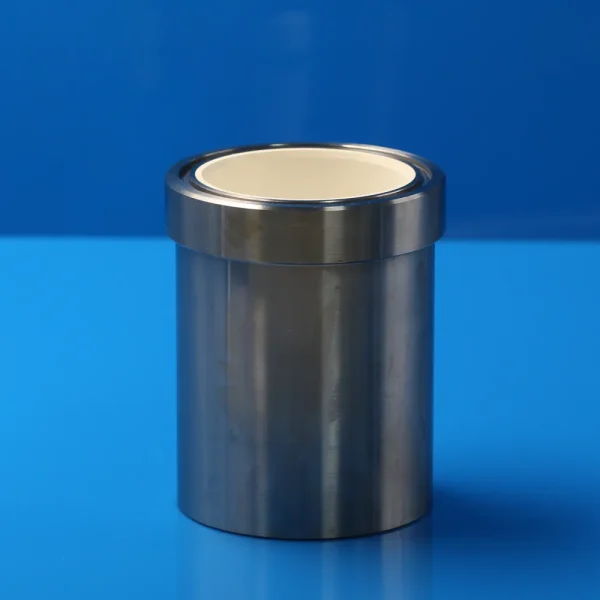

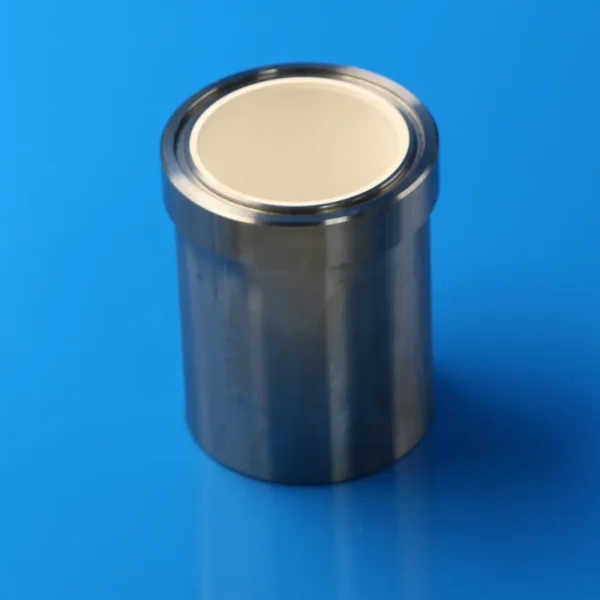

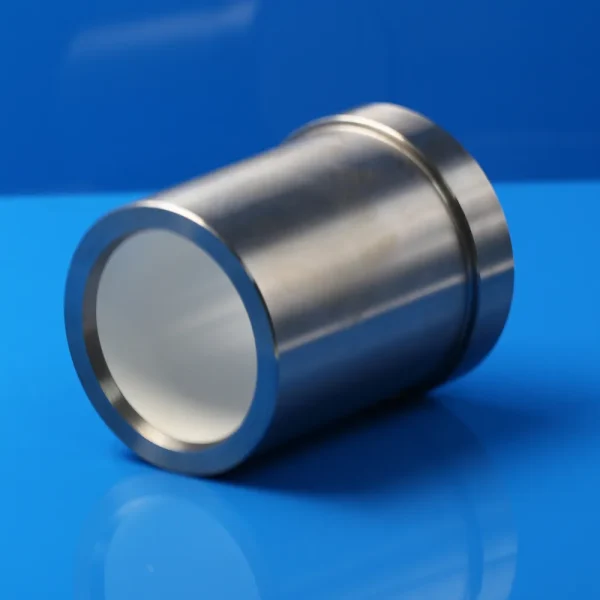

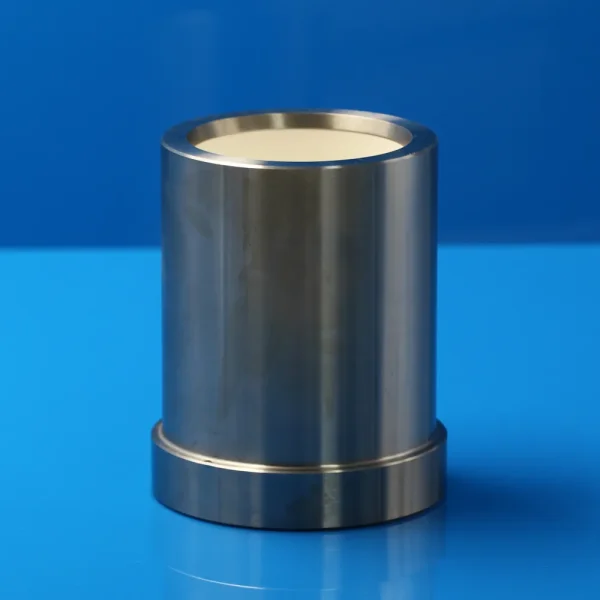

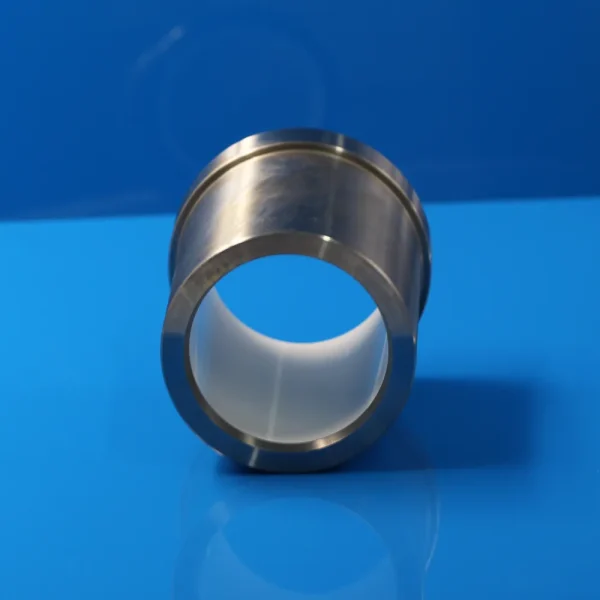

The Oilfield Petroleum Mud Pump Ceramic Liner Sleeve features a composite structure with a 304 stainless steel outer shell and a high-performance ZTA (zirconia toughened alumina) ceramic inner liner. This design combines the strength and toughness of metal with the exceptional wear resistance and enhanced fracture toughness of advanced ceramics.
With hardness above HRA90 and significantly improved toughness compared to standard alumina, the ZTA ceramic liner effectively resists severe abrasion and particle erosion from high-pressure drilling fluids, delivering extended service life and improved reliability. Precision CNC machining ensures excellent inner surface finish and tight dimensional control, supporting stable, efficient mud pump operation under extreme oilfield conditions.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Technical Data Sheet (TDS) | 20% ZTA Material Properties – SU0476 |
Product Details
The Oilfield Petroleum Mud Pump Ceramic Liner Sleeve features a composite structure with a 304 stainless steel outer shell and a high-performance ZTA (zirconia toughened alumina) ceramic inner liner. This design combines the strength and toughness of metal with the exceptional wear resistance and enhanced fracture toughness of advanced ceramics.
With hardness above HRA90 and significantly improved toughness compared to standard alumina, the ZTA ceramic liner effectively resists severe abrasion and particle erosion from high-pressure drilling fluids, delivering extended service life and improved reliability. Precision CNC machining ensures excellent inner surface finish and tight dimensional control, supporting stable, efficient mud pump operation under extreme oilfield conditions.
Technical Highlights
- Composite dual-layer structure: 304 stainless steel outer sleeve + ZTA ceramic inner liner
- Enhanced wear resistance: High-hardness ZTA ceramic with improved toughness and crack resistance
- Strong impact resistance: Metal casing provides structural reinforcement and shock absorption
- High precision machining: Micron-level inner surface finish for optimal sealing and flow stability
- Designed for harsh environments: Suitable for high-pressure, high-abrasion and erosive working conditions
Typical Applications
- Core components in oil and gas drilling mud pump systems
- Shale gas hydraulic fracturing operations
- Offshore oil platform drilling environments
- High-pressure slurry and abrasive media transport systems
Specifications and Models Table
| Model | OD(mm) | ID(mm) | H(mm) |
| IN-FMC0618-57 | 69.93 | 57 | 82.98 |
| IN-FMC0618HV-57 | 68.55 | 57.2 | 90.03 |
| IN-FMC435/1122-57 | 82.85 | 69.8 | 98.88 |
| IN-FMC1622-57 | 83 | 69.75 | 135 |
| IN-FMC1618-57 | 83 | 56.85 | 135.4 |
| IN-FMC1328-57 | 114.3 | 88.15 | 151 |
| IN-FMC1432-57 | 139.52 | 101.41 | 165.22 |
| IN-K3500PT 3.5″-57 | 126.79 | 88.79 | 190.52 |
| IN-SC-170L 4″-57 | 142.38 | 101.06 | 206.38 |
| IN-SC-45-57 | 95.15 | 56.68 | 101.6 |
| IN-SC-65-57 | 111.75 | 75.42 | 139.81 |
Frequently Asked Questions
The sleeve features a 304 stainless steel outer shell combined with a high-performance ZTA (zirconia toughened alumina) ceramic inner liner.
It is ideal for oil and gas drilling mud pumps, shale gas hydraulic fracturing, offshore oil platform drilling, and high-pressure abrasive media transport systems.
ZTA ceramic offers significantly improved fracture toughness and wear resistance compared to standard alumina, with hardness above HRA90.
The specifications table lists available models with different OD, ID, and H dimensions. Custom sizes may be available upon request.
The metal casing provides structural reinforcement and shock absorption, while the ceramic liner resists severe abrasion and particle erosion.
Micron-level inner surface finish ensures optimal sealing and flow stability during operation.
Yes, it is specifically designed for high-pressure, high-abrasion, and erosive working conditions in oilfield operations.
The combination of advanced ceramic and steel provides extended service life and improved reliability compared to traditional materials.
