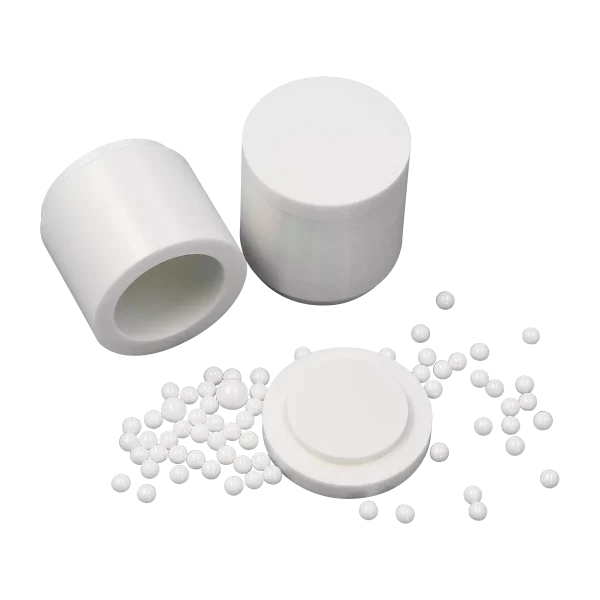

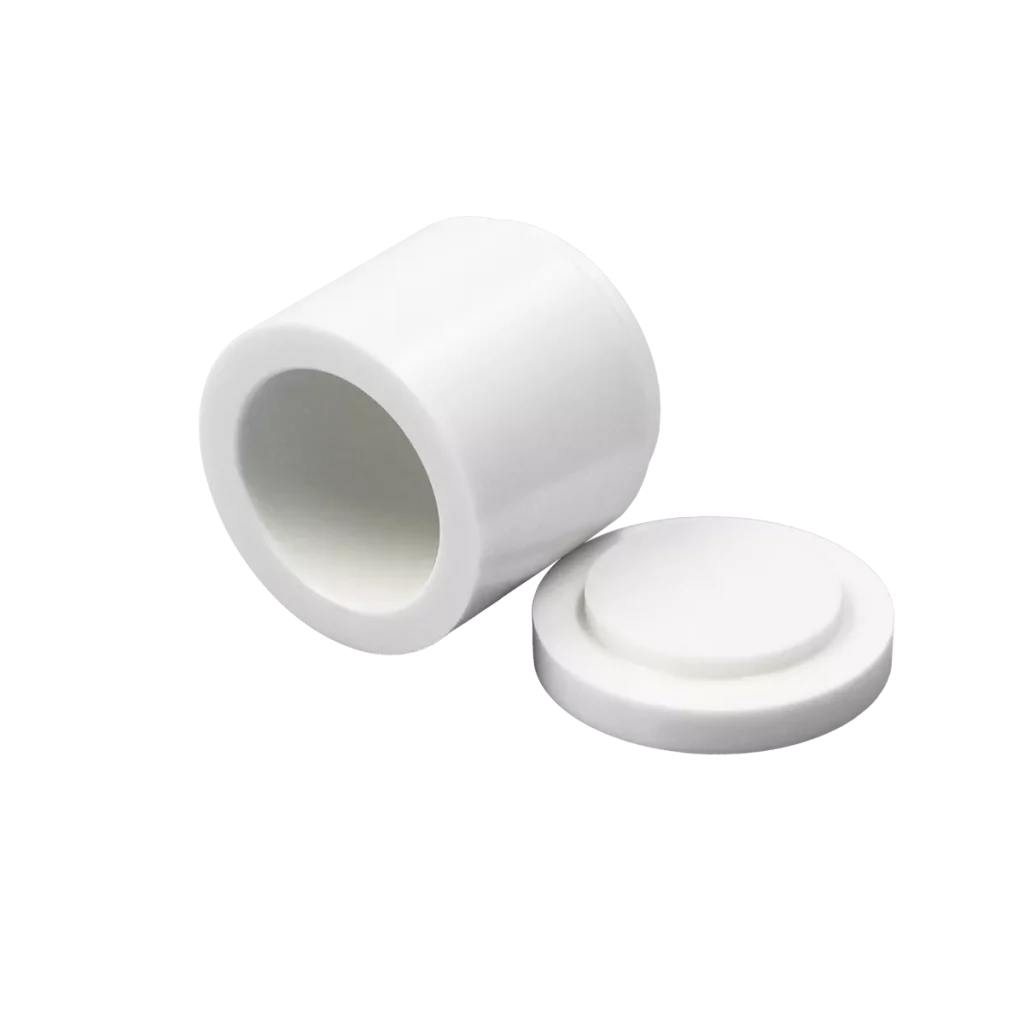

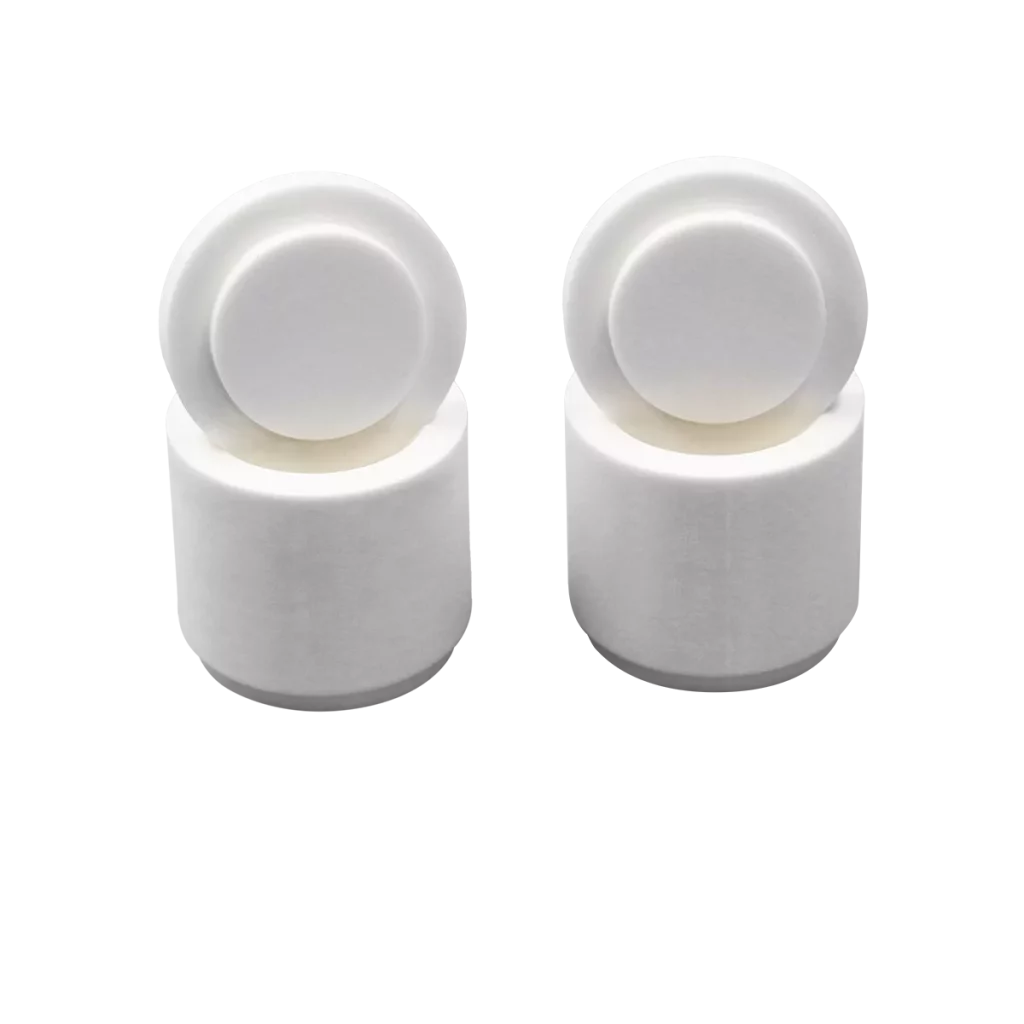

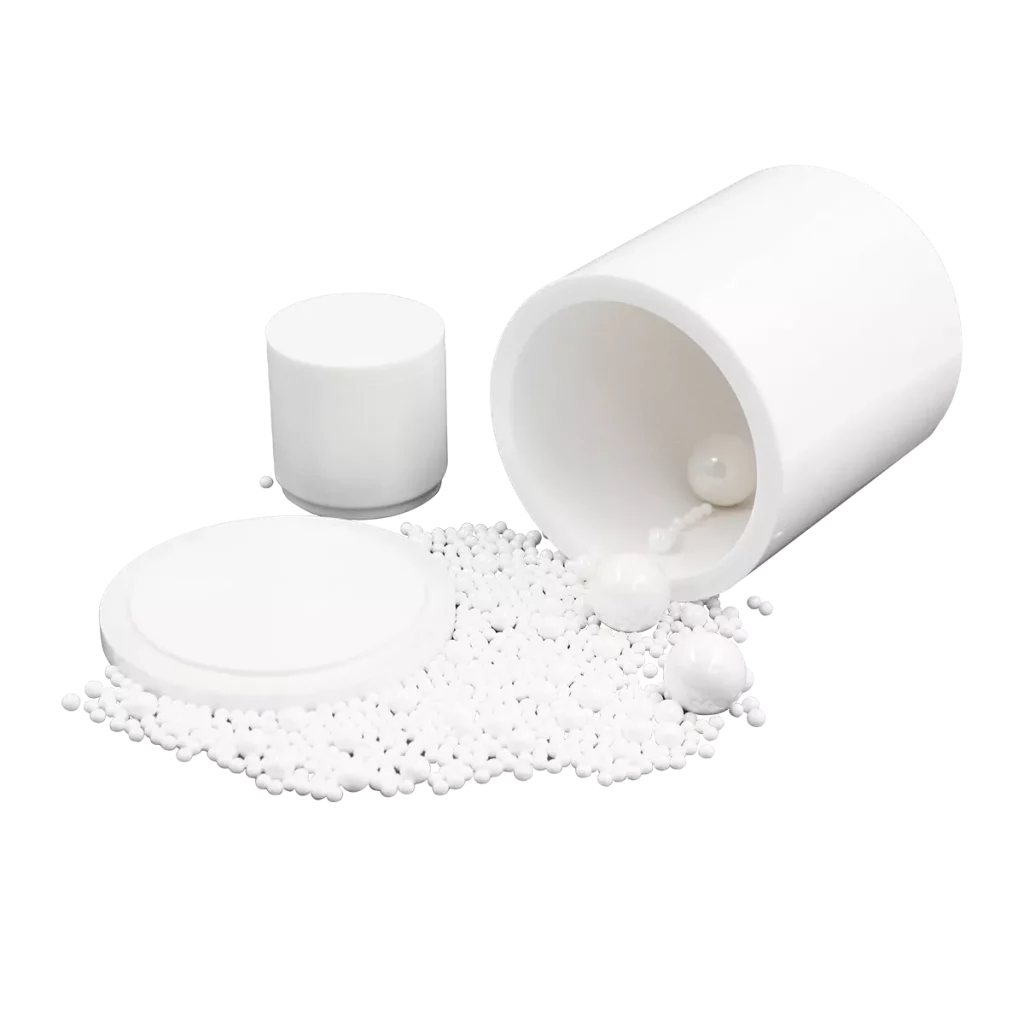

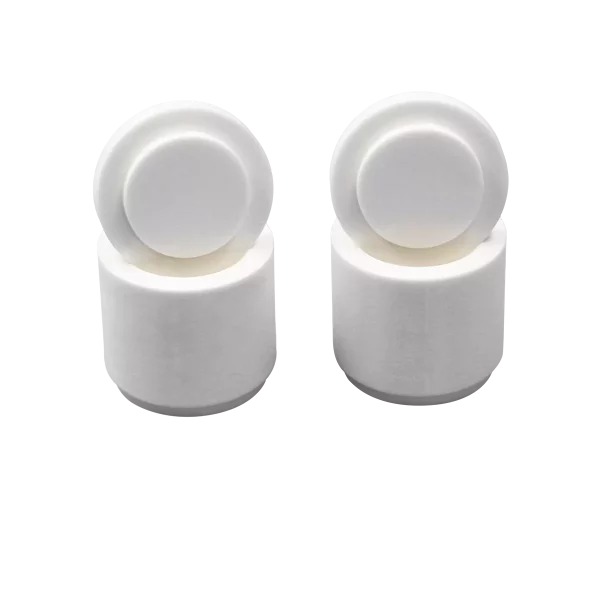

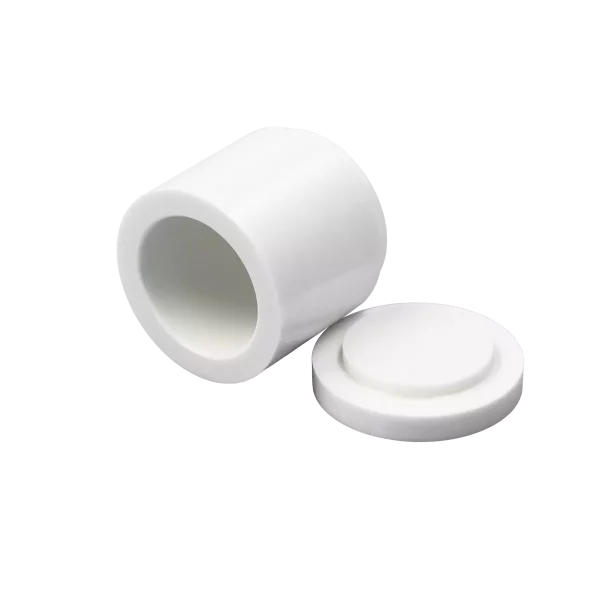

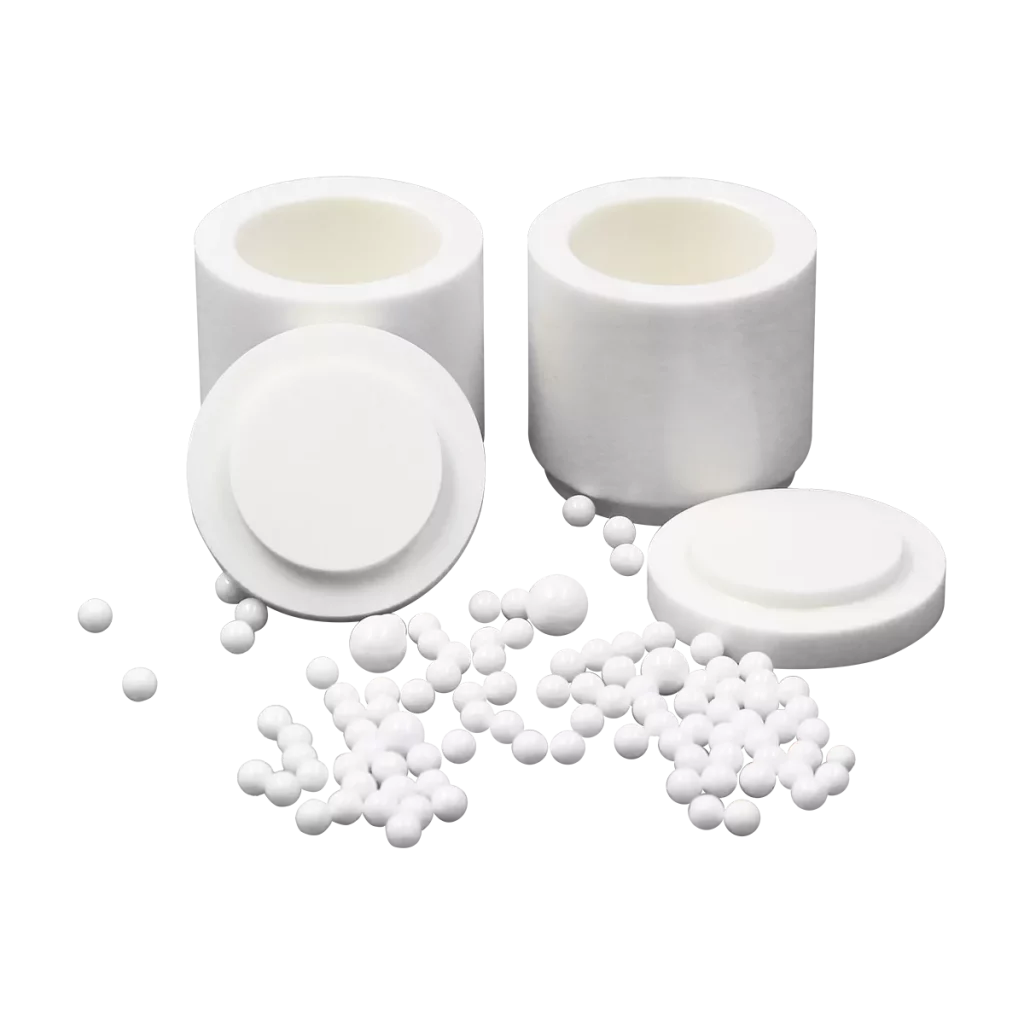

Zirconium oxide jars, 60 times harder than regular steel, offer exceptional wear resistance and resist acids and solvents. Ideal for a wide range of industries including paint, ink, geology, and more, each set comes with a jar, lid, rubber gasket, and assorted zirconium oxide grinding balls.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Safety Data Sheet (SDS) | MSDS_Zirconia_Ceramic_EN |
| Catalogue | Zirconium_Beads_and_Mill_Jars |
Product Details

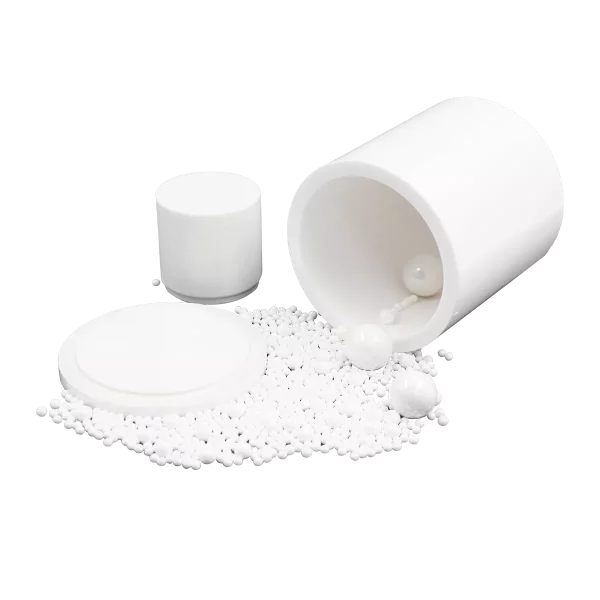

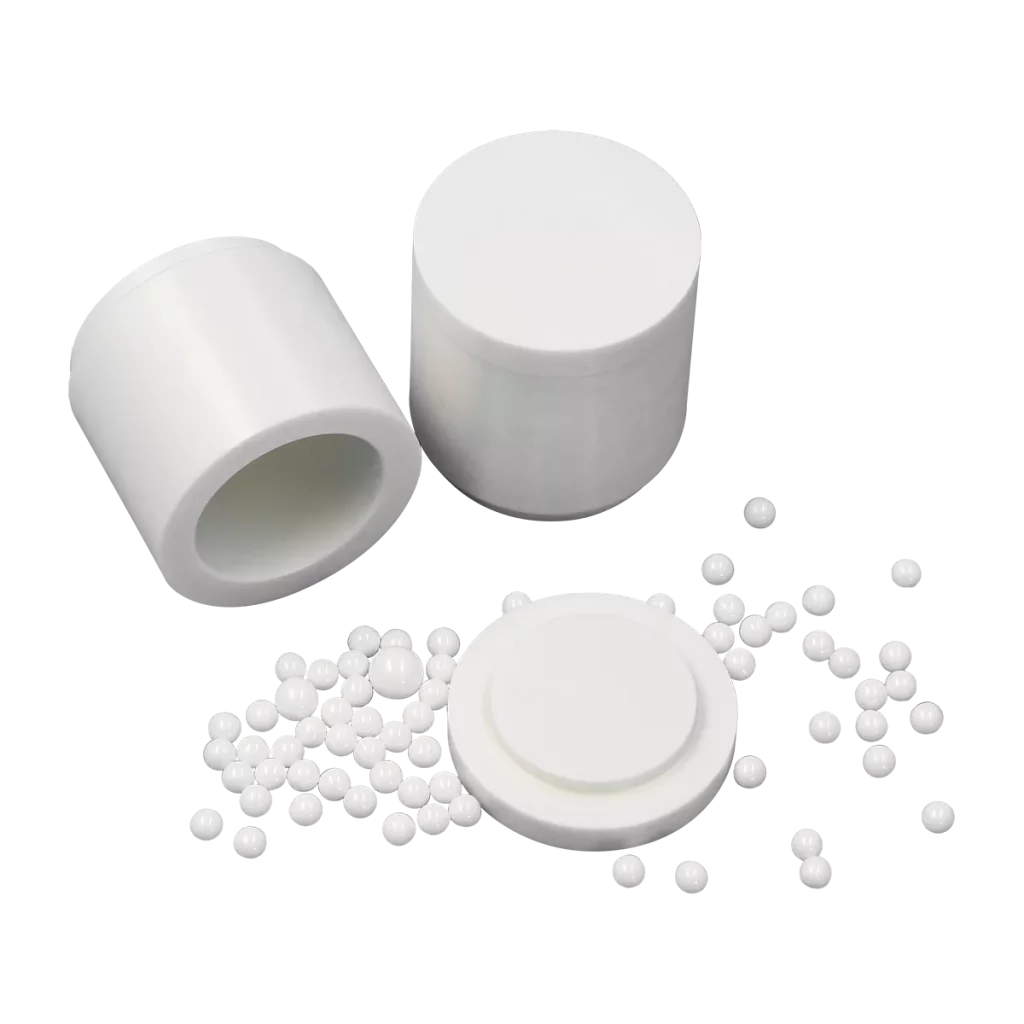

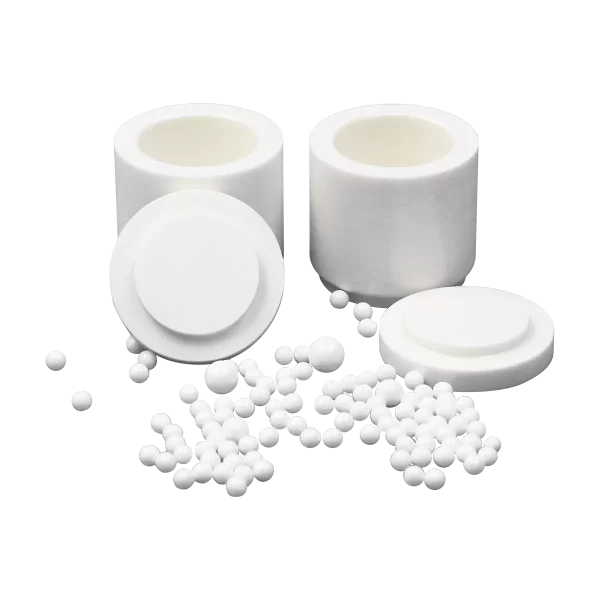

Zirconium oxide jars are 60 times harder than regular steel, highly wear-resistant, and resistant to acid and solvents. The grinding jars are extensively applied in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, and so on. Each jar set includes a grinding jar, a jar lid, a rubber sealing gasket, and different sizes of mixed zirconium oxide grinding balls.
Features:
1. High cost-effectiveness, low wear, and long lifetime.
2. High specific gravity, high efficiency.
3. Highly wear-resistant to acid and solvents.
4. Highly polished, smooth, easy to clean, low-abrasion to the equipment.
5. High mechanical strength, good toughness, impact resistance, and no broken beads.

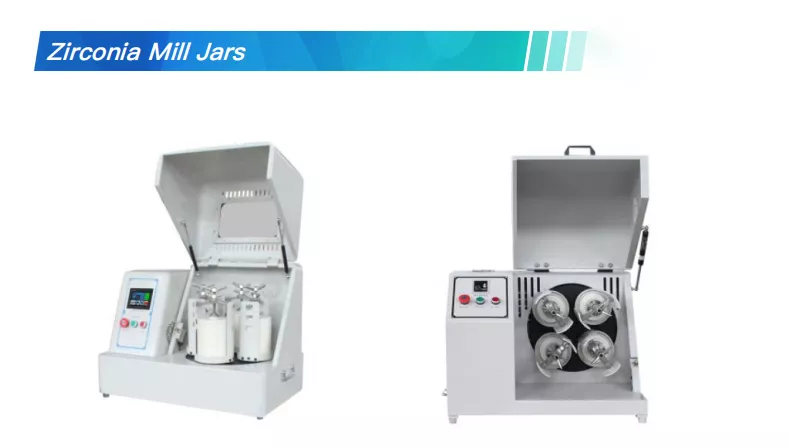

6. Mainly used for lab planetary ball mill machines.
Description：
Material： Zirconium Oxide – ZrO2
Jar Volume：100ml to 3000ml
Max Loading Capacity grinding jar：2/3 capacity of the grinding jar
Density: 6.0 g/cm3
Color： White
Suitable for： Fibrous, abrasive samples
Max Working Temperature：320°C
We can customize various types of vacuum jars according to the customer’s needs.
Physical Parameters
| Composition (%) | Specific Gravity (g/cm³) | Bulk Density (g/cm³) | Hardness (Mho’s) |
| ZrO2: 95±0.2 Y2O3: 5±0.2 |
≥6.0 | ≥3.7 | 9 |

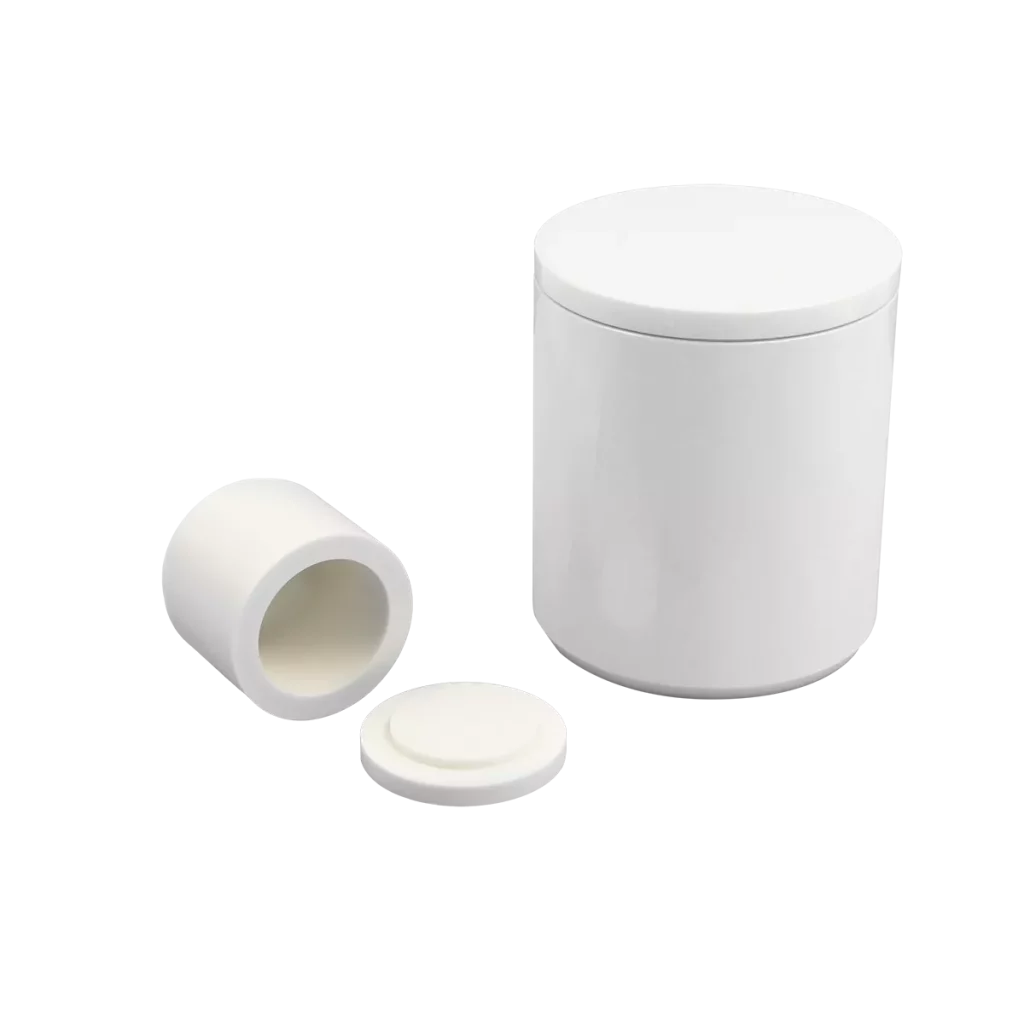

Zirconia Ceramic Mill Jars with Lids
Specification Parameters:
|
Volume of Jar
(ml)
|
External Diameter
(mm)
|
Inner Diameter
(mm)
|
Height of Without Lid
(mm)
|
|
50
|
56
|
40
|
50
|
|
100
|
70
|
50
|
60
|
|
250
|
90
|
70
|
80
|
|
500
|
100
|
80
|
108
|
|
1000
|
128
|
108
|
138
|
|
1500
|
132
|
112
|
165
|
|
2000
|
158
|
138
|
150
|
|
2500
|
158
|
138
|
180
|
|
3000
|
158
|
138
|
208
|
|
Remarks: Size deviation within ±2mm.
|
|||
* Remarks: Size deviation within ±2mm; Weight deviation within ±0.2kg
Frequently Asked Questions
We supply alumina (Al2O3), aluminum nitride (AlN), boron nitride (BN), silicon nitride (Si3N4), zirconia (ZrO2) , beryllia ceramics (BeO), silicon carbide (SiC), boron carbide (B4C), porous ceramics, machinable glass ceramic parts, including crucibles, nozzles, shaft, piston, setter, washer, seals, cutting tool components, insulators, ceramic to metal sealing, metallized ceramics, ceramic heater, ceramic reflector and ceramic filling pump etc.
Key benefits include: extreme hardness, wear/corrosion resistance, high-temperature stability, electrical insulation, and bio-compatibility, ideal for harsh industrial environments.
Yes. We offer CNC machining, ceramic injection molding, cold isostatic pressing, hot pressing, dry pressing and casting to produce non-standard parts based on your drawings or samples.
Different product have different MOQ, if you have mass production in future, we can discuss MOQ again to meet your requirement.
Our products meet ISO 9001:2015 and IATF16949 standards. Material COA (Certificate of Analysis) and mechanical test reports (e.g., hardness, density, flexural strength) are available.
Standard tolerance is ISO2768-M. Precision machining can reach ±0.001mm (depending on material and design).
Standard parts: 1-7 days; Custom parts: 30-60 days (complex designs require additional evaluation).
We use two or three layer protection: : shock-absorbing foam + reinforced cartons or shock-absorbing foam + individual blister boxes + reinforced cartons. Fragile labels are applied for delicate parts.
Yes. Provide your application conditions (temperature/medium/pressure/load), and our engineers will recommend the optimal material solution.
Report the issue within 7 days with photos/videos. Verified defects will be replaced or refunded at no cost.
Yes. Contact our email info@innovasupplies.com to get the more detail about offline orders. For corporate transfers, provide full company name and tax ID for VAT invoice issuance.
Yes, for large orders, we can discussing by offline through email.
Returns are accepted if:
– Received incorrect product model/specification
– Manufacturing defects (non-human damage)
– Unopened packaging & resalable condition (standard parts only)
Claims must be filed within 7 business days after delivery.
Custom orders are non-returnable (unless with critical defects) as they are produced specifically for you. Pre-shipment inspection reports will be provided for approval.
Tours by appointment only. Submit 3 days in advance: company name, visitor position, purpose. Note: Clean-rooms require protective gear.
If you have mass production in future, 1-5 free standard samples are available and you pay the freight cost, custom samples charged at cost.
