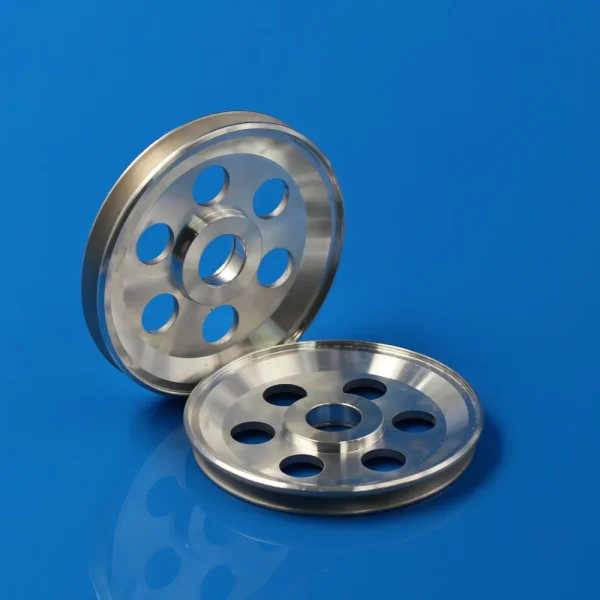

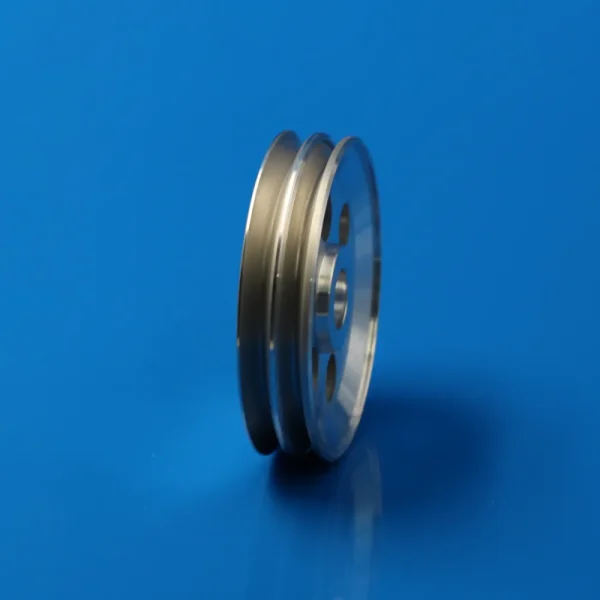

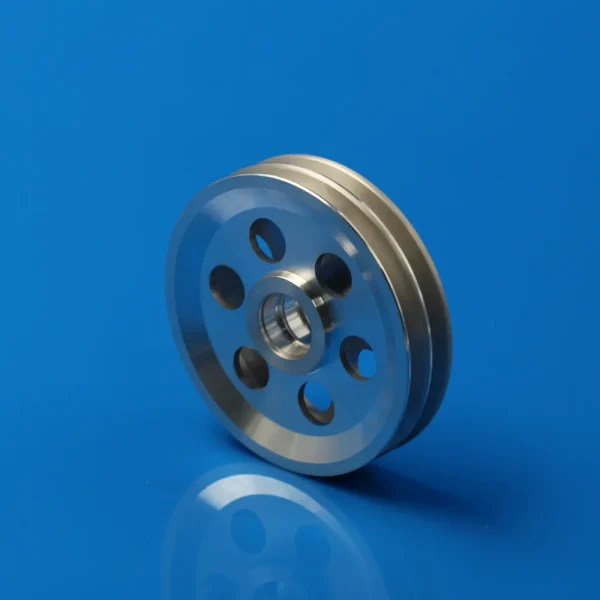

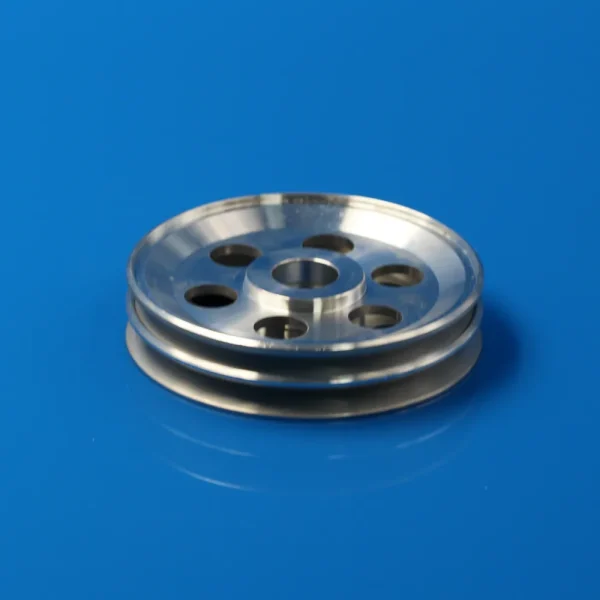

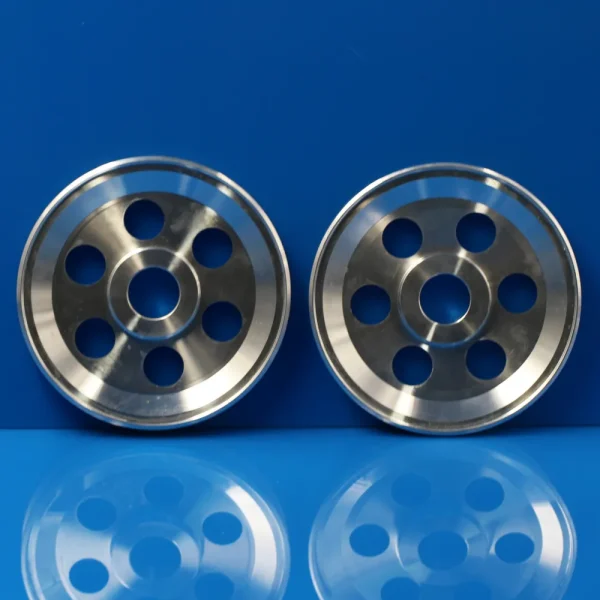

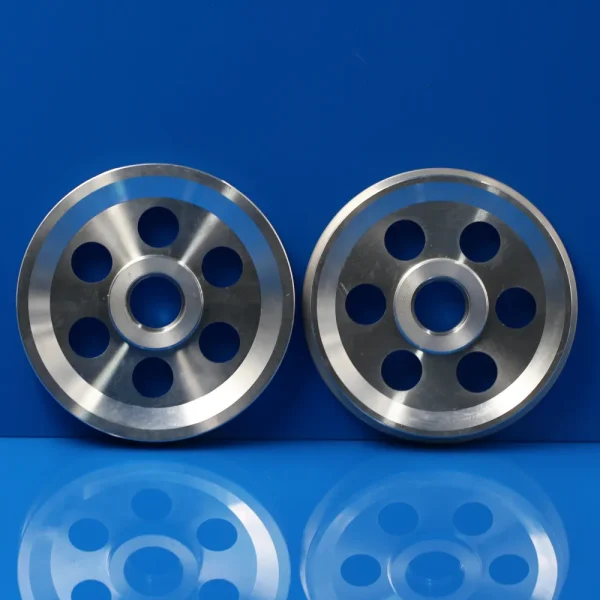

Modular Aluminum Alloy Yarn Storage Reel for Textile Machinery
This modular aluminum alloy yarn storage reel is designed for use in textile machinery to ensure stable yarn feeding, guiding, and storage during high-speed operation.
The product features a combined structure consisting of side wheels (Type A) and middle wheels (Type B), forming a complete set for efficient yarn management. Its modular design allows flexible configuration to meet different machine requirements and yarn processing conditions.
This modular aluminum alloy yarn storage reel is designed for use in textile machinery to ensure stable yarn feeding, guiding, and storage during high-speed operation.
The product features a combined structure consisting of side wheels (Type A) and middle wheels (Type B), forming a complete set for efficient yarn management. Its modular design allows flexible configuration to meet different machine requirements and yarn processing conditions.
Manufactured from high-quality aluminum alloy through high-temperature melting and die-casting processes, the product ensures consistent quality in mass production while offering excellent cost-performance among various guide wheel components.
Widely used in:
Yarn storage and feeding systems
Textile winding and processing equipment
Knitting and weaving machinery
Fine yarn handling applications

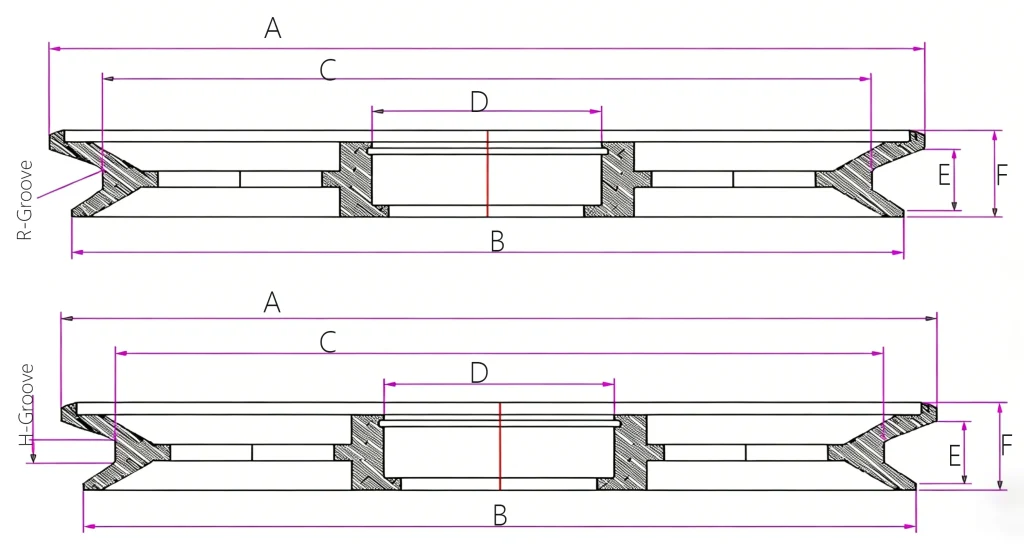

Specifications and Models Table
Product Number
Outer Diameter of Large End A
Small Flange Outer Diameter B
Groove Diameter C
Bearing Bore D
Slot Width E
Total Thickness F
Bearing Model
R-Groove (Round) / H-Groove (Flat)
IN-YZL-100A-96
φ100
/
φ75
φ10
14
19.3
2-6900
R2
IN-YZL-100B-96
φ100
φ91
φ75
φ10
12
19.1
2-6900
R2
IN-YZL-120A-96
φ120
/
φ100
φ10/15/17
10
16
6000/6902/6903
R1.5
IN-YZL-120B-96
φ120
φ113.5
φ100
φ10/15/17
8.8
14.8
6000/6902/6903
R1.5
IN-YZL-160A-R4-96
φ160
φ136
φ20
15
22.5
6004
R4
IN-YZL-160B-R4-96
φ160
φ151
φ136
φ20
13.5
20
6004
R4
IN-YZL-160A-H6.2-96
φ160
/
φ138
φ20
15
22.5
6004
H6.2
IN-YZL-160B-H6.2-96
φ160
φ151
φ138
φ20
13.5
20
6004
H6.2
IN-YZL-200A-R5-96
φ200
/
φ174
φ25
15
23
6005
R5
IN-YZL-200B-R5-96
φ200
φ191
φ174
φ25
14
21.5
6005
R5
IN-YZL-200A-H9-96
φ200
/
φ174
φ25
15
23
6005
H9
IN-YZL-200B-H9-96
φ200
φ191
φ174
φ25
14
21.5
6005
H9
IN-YZL-250A-R6-96
φ250
/
φ220
φ30
20
28
6206
R6
IN-YZL-250B-R6-96
φ250
φ241
φ220
φ30
18.8
26
6206
R6
IN-YZL-250A-H12-96
φ250
/
φ220
φ30
20
28
6206
H12
IN-YZL-250B-H12-96
φ250
φ241
φ220
φ30
18.8
26
6206
H12
IN-YZL-300A-R8-96
φ300
/
φ264
φ35
22
32.5
6207
R8
IN-YZL-300B-R8-96
φ300
φ293
φ264
φ35
21
31
6207
R8
IN-YZL-300A-H16-96
φ300
/
φ264
φ35
22
32.5
6207
H16
IN-YZL-300B-H16-96
φ300
φ293
φ264
φ35
21
31
6207
H16
IN-YZL-350A-R8-96
φ350
/
φ316
φ35
22
32
6207
R8
IN-YZL-350B-R8-96
φ350
φ338.5
φ316
φ35
20
30
6207
R8
IN-YZL-350A-H16-96
φ350
/
φ316
φ35
22
32
6207
H16
IN-YZL-350B-H16-96
φ350
φ338.5
φ316
φ35
20
30
6207
H16
IN-YZL-400A-R10-96
φ400
/
φ360
φ40
27
37
6208
R10
IN-YZL-400B-R10-96
φ400
φ391
φ360
φ40
26
35.5
6208
R10
IN-YZL-400A-H18-96
φ400
/
φ360
φ40
27
37
6208
H18
IN-YZL-400B-H18-96
φ400
φ391
φ360
φ40
26
35.5
6208
H18
IN-YZL-500A-96
φ500
/
φ450
φ50
30
46
6210
R12.5
IN-YZL-500B-96
φ500
φ485
φ450
φ50
30
46
6210
R12.5
Note: Supplied as a complete set (A-type side wheel + B-type middle wheel).
Frequently Asked Questions
The product is manufactured from high-quality aluminum alloy through high-temperature melting and die-casting processes.
Yes, its modular design allows flexible configuration to match different machine specifications and yarn processing conditions.
Primarily for textile machinery applications including yarn storage, winding, knitting, weaving, and fine yarn handling.
R-Groove refers to round groove profiles while H-Groove denotes flat groove profiles for different yarn handling needs.
Yes, it’s supplied as a complete set combining side wheels (Type A) and middle wheels (Type B).
Offers flexible configuration options, easy replacement, and consistent performance across different textile machinery configurations.
The combination of precision bearings, optimized groove diameters, and robust aluminum construction enables smooth high-speed operation.
