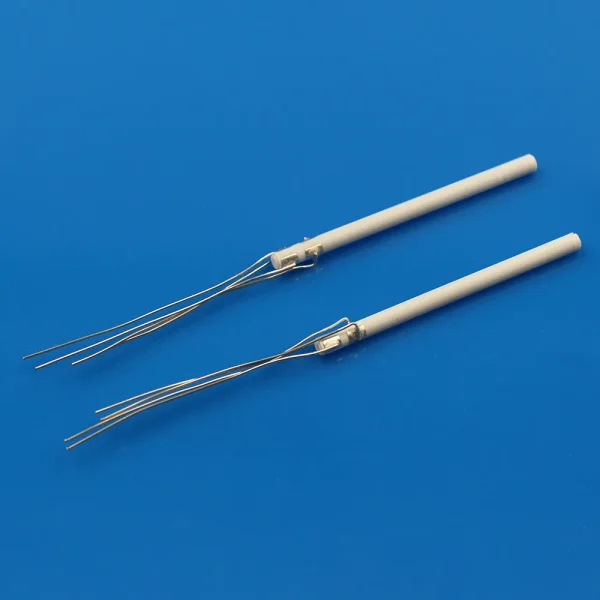

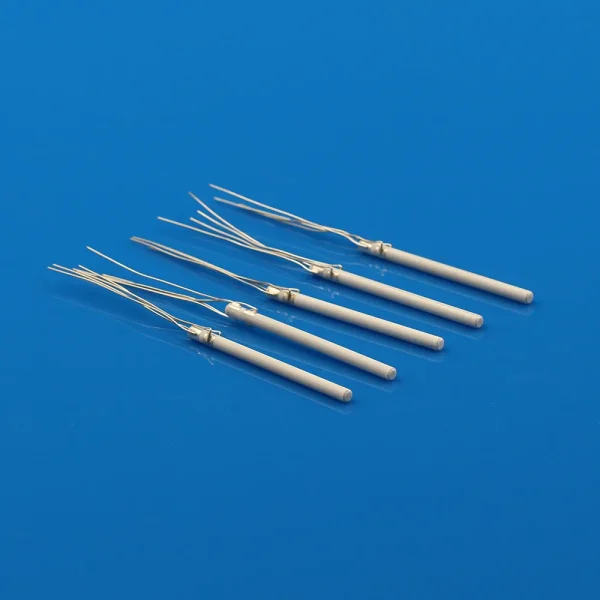

The 4-Wire Alumina Ceramic Heating Element is a high-performance ceramic heater core designed for electric soldering irons and other precision heating equipment. Manufactured from 95% alumina ceramic, it offers excellent electrical insulation, rapid heat transfer, and reliable operation in continuous heating applications. Also known as a ceramic heater core, this heating element is widely used in electric soldering irons requiring fast and stable heat generation.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Technical Data Sheet (TDS) | INNO-95% Alumina Ceramic Material Properties-SU0627 |
Product Details
The 4-Wire Alumina Ceramic Heating Element is a high-performance ceramic heater core designed for electric soldering irons and other precision heating equipment. Manufactured from 95% alumina ceramic, it offers excellent electrical insulation, rapid heat transfer, and reliable operation in continuous heating applications. Also known as a ceramic heater core, this heating element is widely used in electric soldering irons requiring fast and stable heat generation.
The heating element features a durable ceramic structure with nickel lead wires and silver-copper brazed connections, ensuring stable performance and a long service life. Its compact design makes it suitable for replacement, maintenance, or OEM heating assemblies requiring consistent thermal output.
This ceramic heating element is widely used in soldering stations, electronic repair tools, and customized heating equipment. Custom voltages, dimensions, power ratings, and wire configurations are available according to customer requirements.
Key Features
- Fast and efficient heat generation
- Excellent electrical insulation performance
- Stable temperature response for precision heating
- Durable ceramic construction for long service life
- Reliable performance under continuous operation
- Good thermal shock resistance
- Suitable for replacement and OEM applications
- Custom voltage, dimensions, and lead configurations available
Specifications
| Item | Specification |
|---|---|
| Material | 95% Alumina Ceramic |
| Operating Voltage | 110 VAC |
| Wire Configuration | 4 Wire |
| Heating Resistance | 500 Ω ±10% |
| Feedback Resistance | 460–550 Ω |
| Lead Wire | Nickel Wire |
| Brazing Material | Silver-Copper Brazing |
| Dielectric Strength | 1500 VAC |
| Insulation Resistance | ≥1×10⁸ Ω |
| Leakage Current | ≤5 mA |

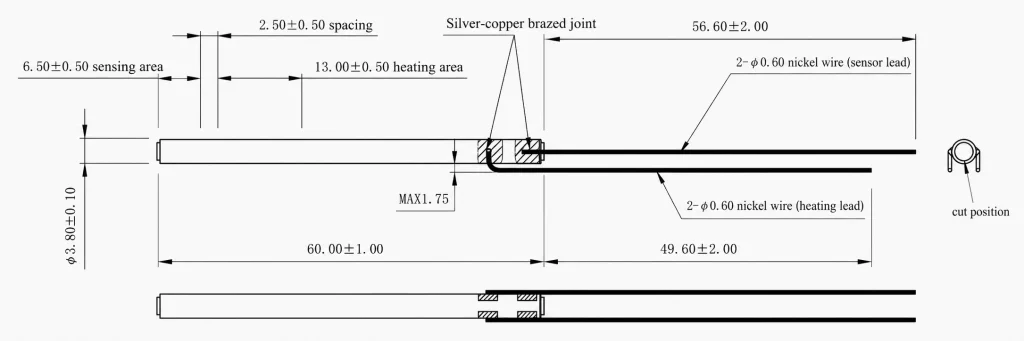

Drawing
Shipping & Customs
Your order may require payment of import duties or other customs clearance fees. Please check the notifications from the logistics company or relevant parties and complete the payment in time to prevent the shipment from being returned.
Frequently Asked Questions
Ceramic heating elements are commonly used in soldering irons, soldering stations, electric heating tools, and other precision heating equipment that require fast, stable, and reliable heat generation.
Alumina ceramic provides excellent electrical insulation, high temperature resistance, good thermal conductivity, and long service life, making it an ideal material for electric heating applications.
A 4-wire configuration separates the heating circuit from the temperature feedback circuit, allowing more accurate temperature control and improved heating stability.
Yes, provided the dimensions, operating voltage, resistance, and wire configuration match your existing heating element. Please check the specifications before ordering.
Key factors include operating voltage, resistance, power rating, dimensions, wire configuration, and compatibility with your soldering equipment or heating system.
Yes. We can manufacture ceramic heating elements with customized dimensions, operating voltages, resistance values, wire configurations, and other specifications based on customer requirements.
