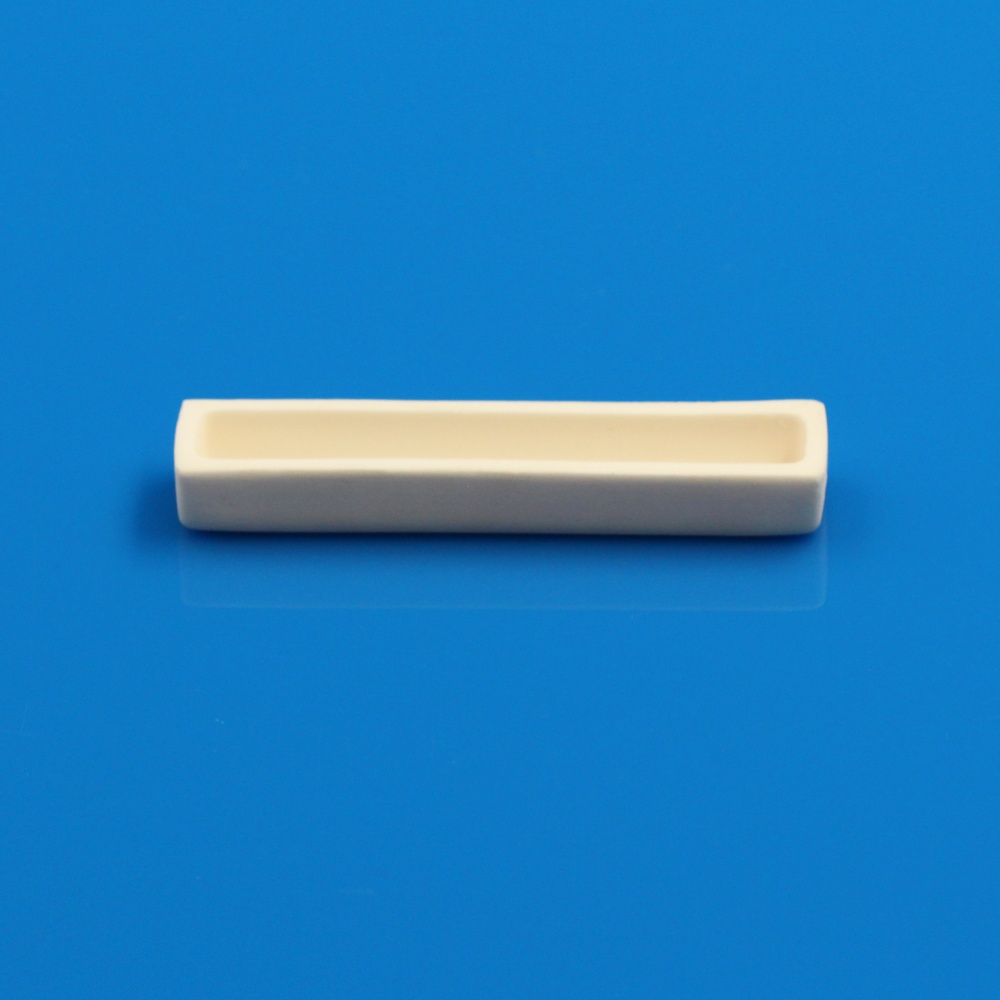

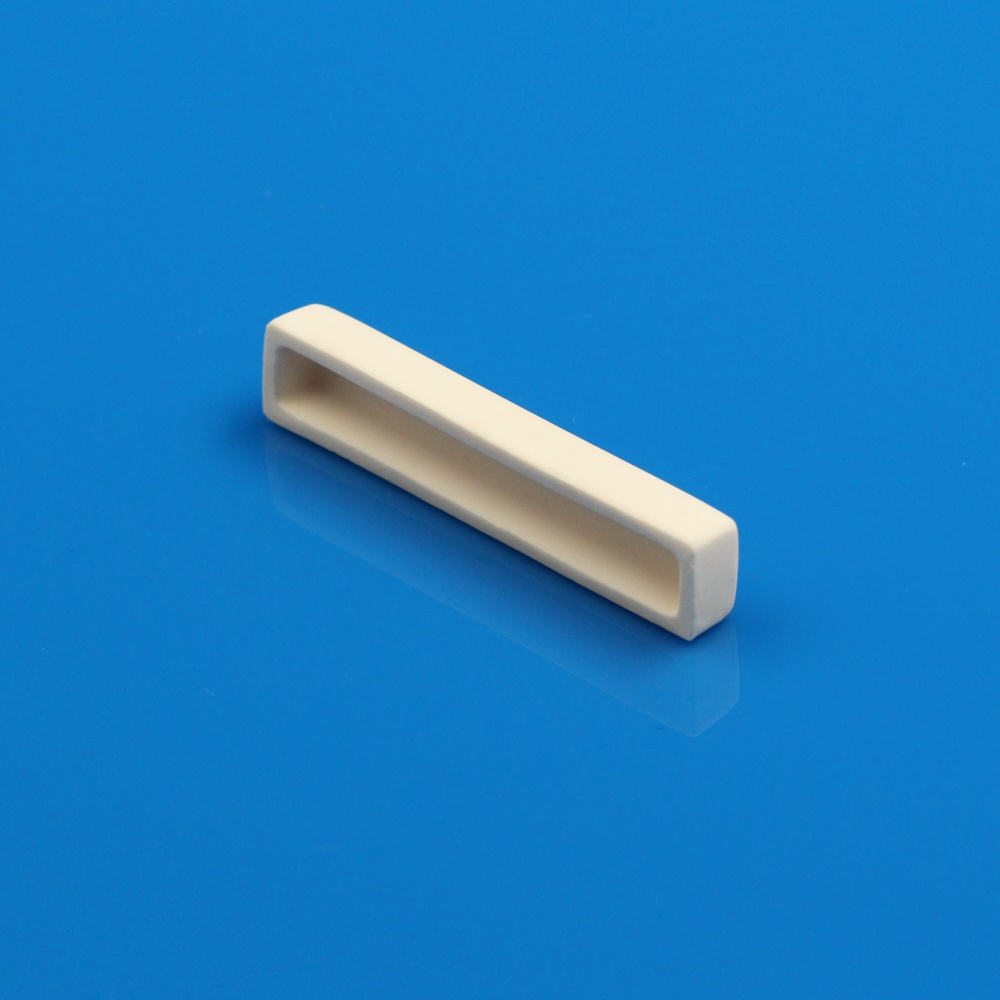

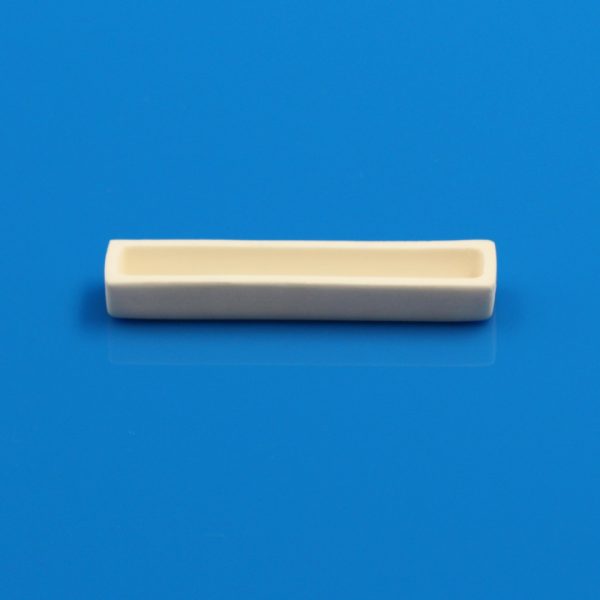

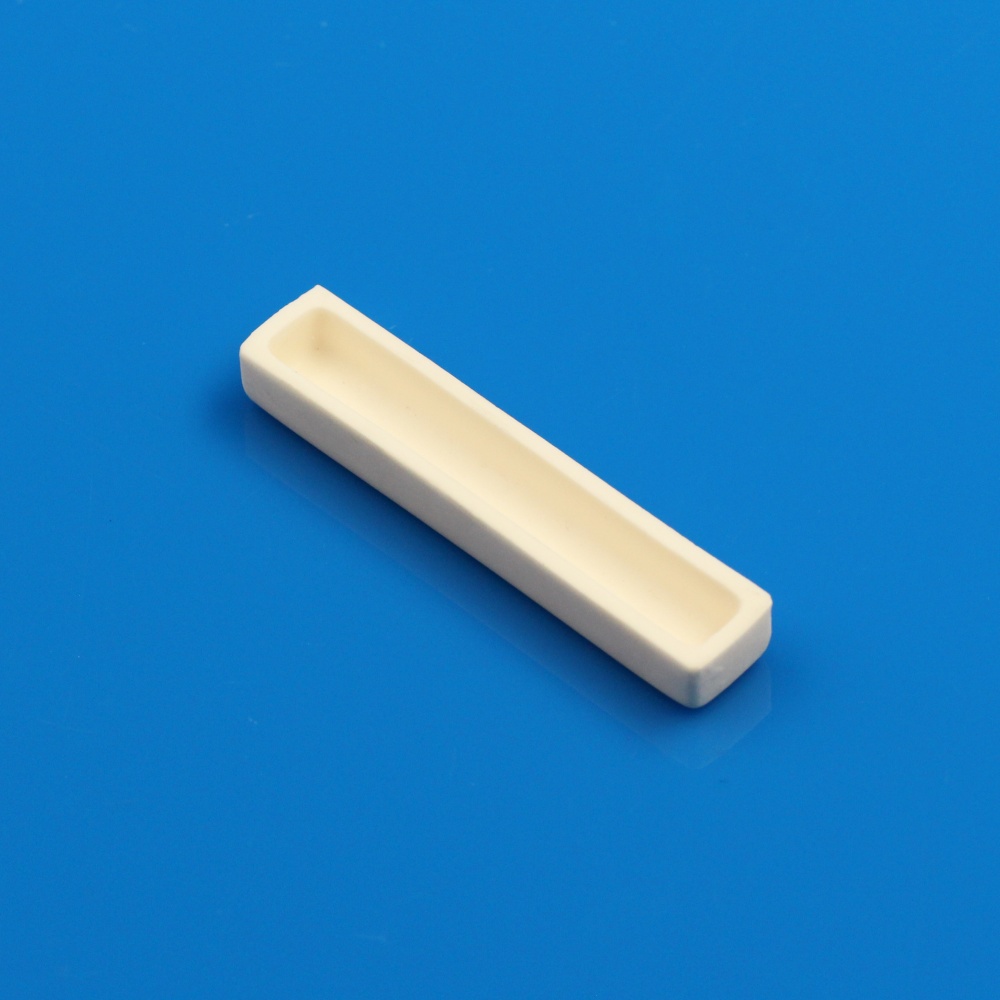

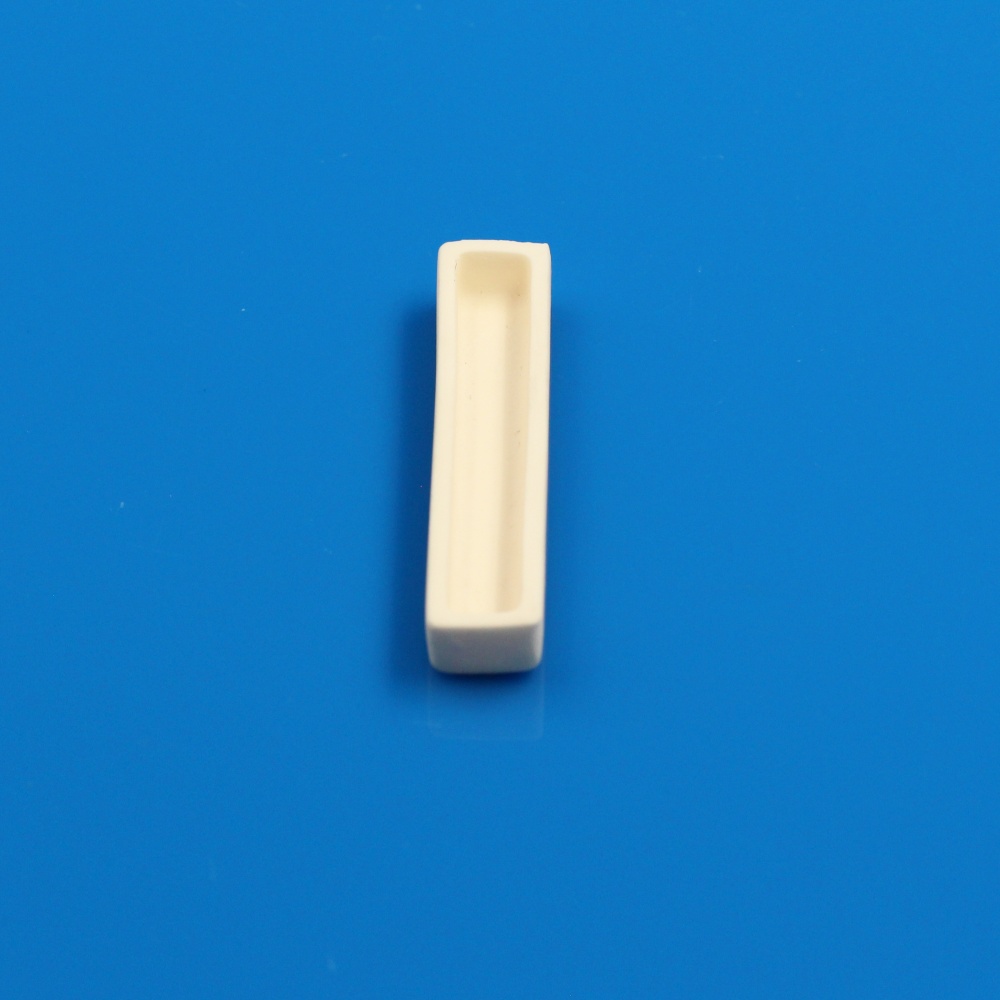

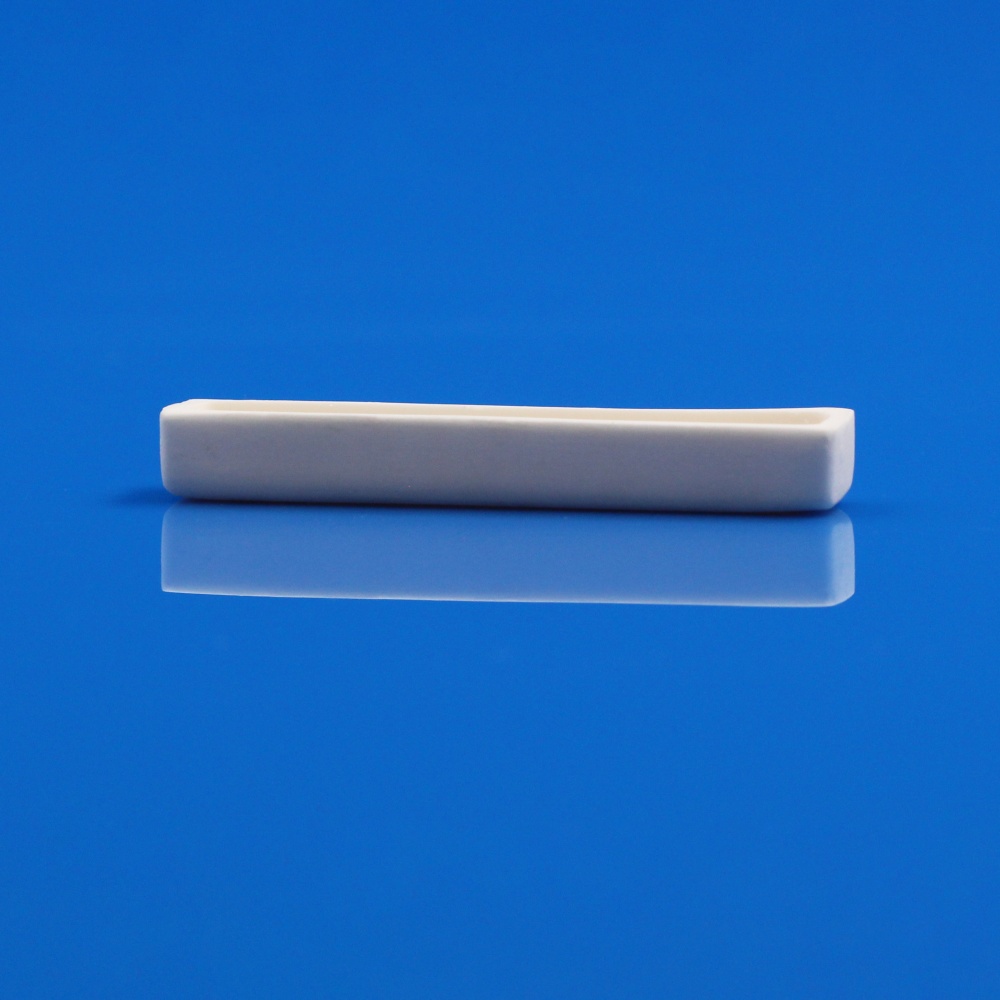

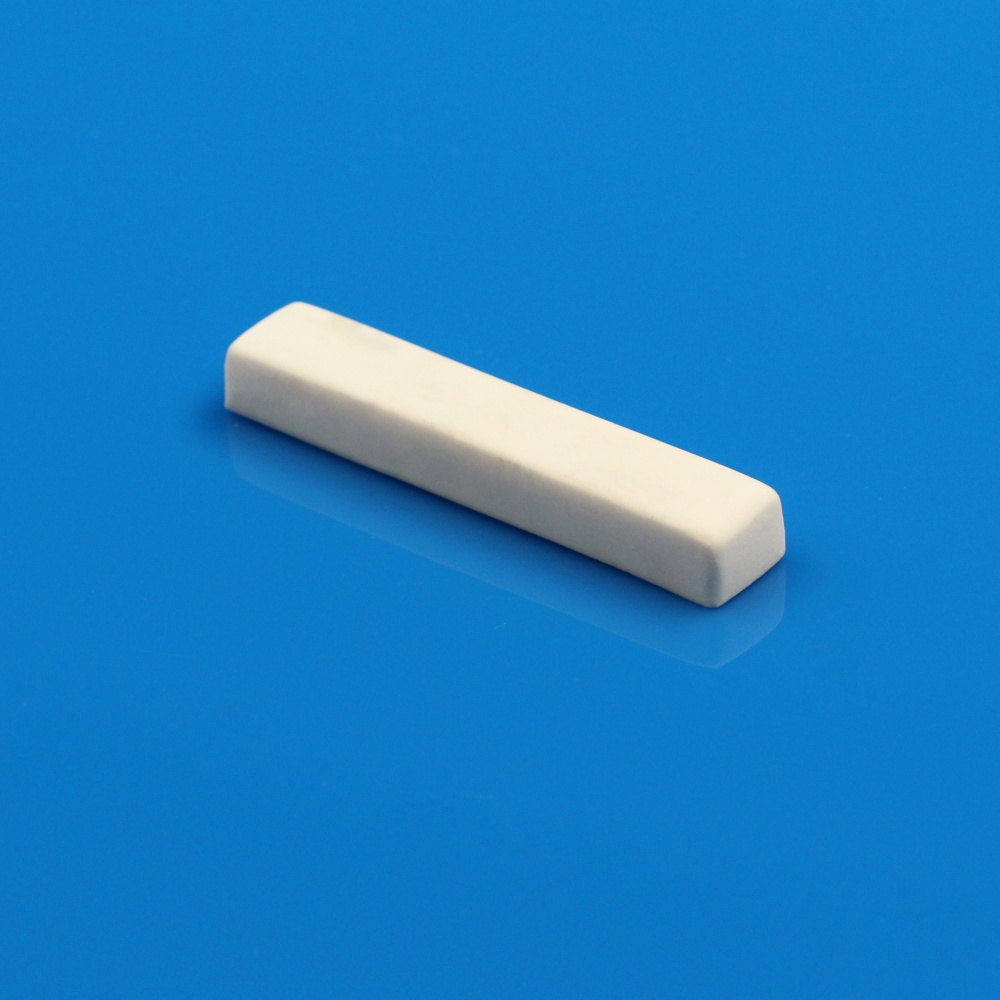

Alumina Rectangular Crucibles (Alumina Boats) engineered for extreme thermal environments. Fabricated from 99% high-purity corundum material, our crucibles offer exceptional temperature resistance up to 1600°C, excellent thermal shock resistance, and superior chemical inertness. Ideal for muffle furnace sintering, metal melting and material heat treatment.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Safety Data Sheet (SDS) | 11-99% Alumina Ceramic Material Properties-SU0003 |
| Technical Data Sheet (TDS) | 99% Alumina MSDS-Innovacera |
| Catalogue | 99% Alumina Crucible（EN） |
Product Details
Alumina rectangular crucible is suitable for the analysis and melt of metal or non-metallic samples in a variety of laboratory and industrial applications.Main purpose of crucible and sagger is as a container for analysis and firing of material and product applied in various industries. For example: analysis of coal, melting of the metal, analysis and firing of chemical raw materials, analysis and melting of glass, analysis and firing of rare earth materials and mineral,firing of high temperature items such as ceramic products and melting of single-crystal raw materials.
Rectangular Alumina Crucibles Specification:
Material: Corundum 99 Alumina Al2O3
Max. Working Temperature: 1600℃
Max. Capacity: 6ml
Size (L*W*H): 75 x 15 x 10mm
Wall Thickness: 2mm
Tolerance: Outer diameter and height ±1mm, wall thickness : (+1mm,-0.2mm), length ±5mm
Melting ceramic crucible Overview of Physical Properties
1).Made of alumina
2).High chemical etching resistance
3).Used for metal casting or analysis
4).Good resistance to rapid cooling and rapid heating, not easy to burst
5).High Slip casting and density
6).Long-term use at 1600 ℃
7).Resistant to sudden cold and hot, un-explosive
1).Made of alumina
2).High chemical etching resistance
3).Used for metal casting or analysis
4).Good resistance to rapid cooling and rapid heating, not easy to burst
5).High Slip casting and density
6).Long-term use at 1600 ℃
7).Resistant to sudden cold and hot, un-explosive
INNOVA Supplies also provides custom crucibles as client’s requirements.
For more details, pls contact info@innovasupplies.com.
Frequently Asked Questions
Due to the thermal expansion properties of the alumina material, heating or cooling too rapidly can cause thermal shock and lead to cracking. To extend the product life, it is recommended to warm up and cool down as slowly as possible, avoiding direct exposure to temperature extremes.
