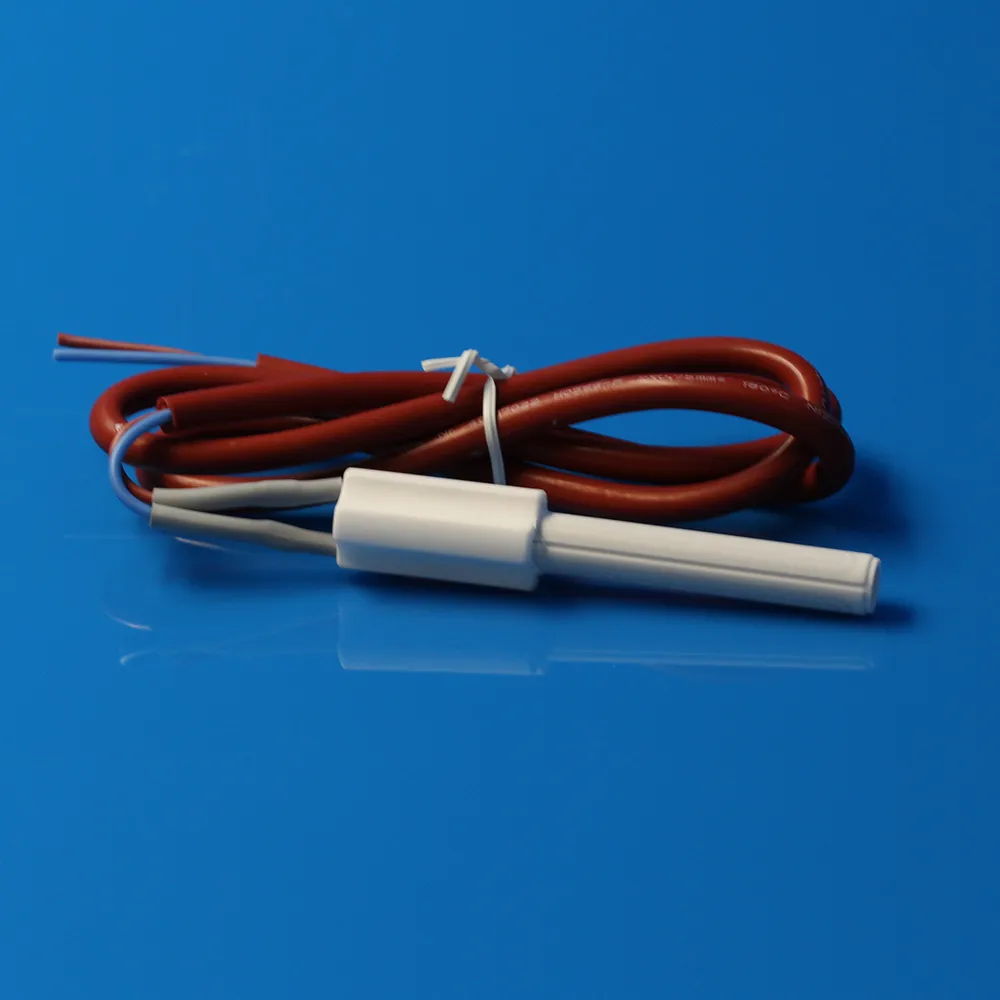

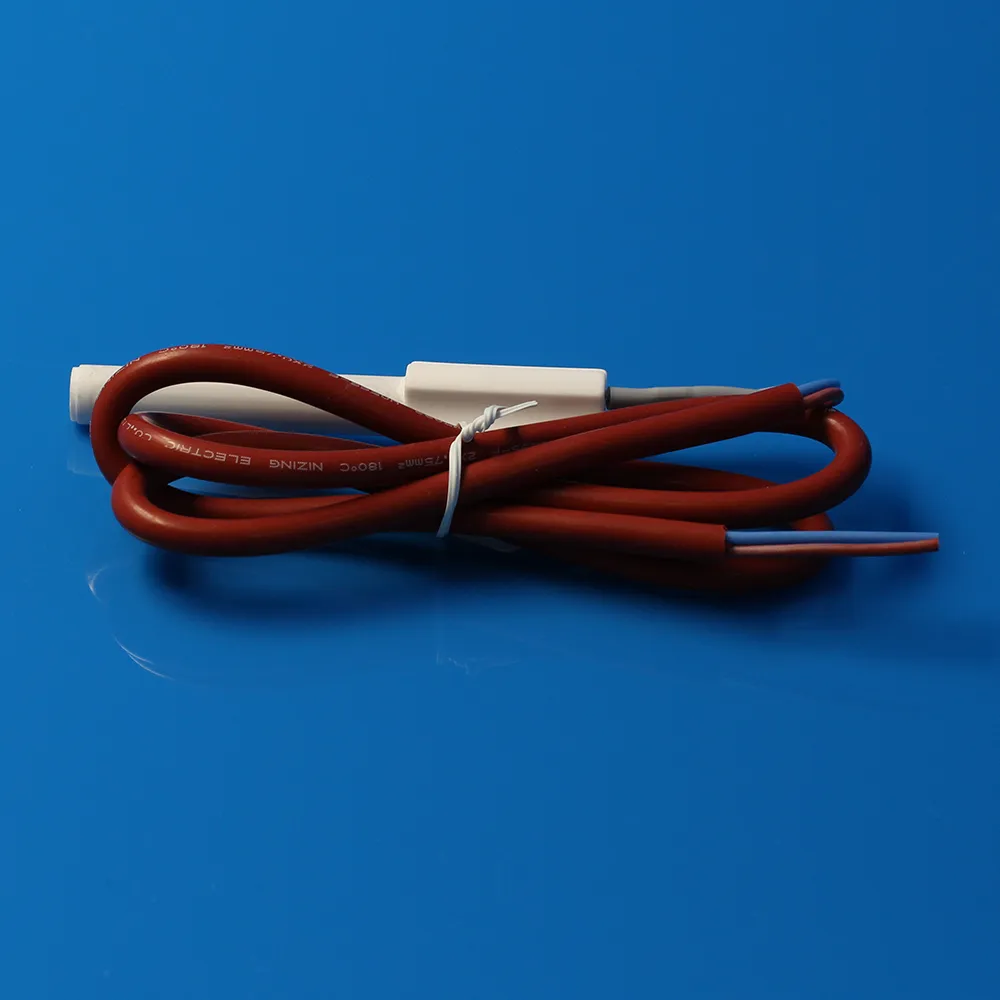

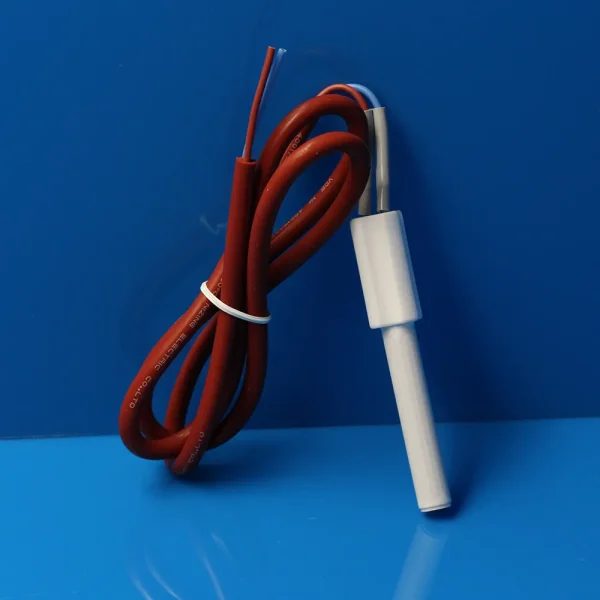

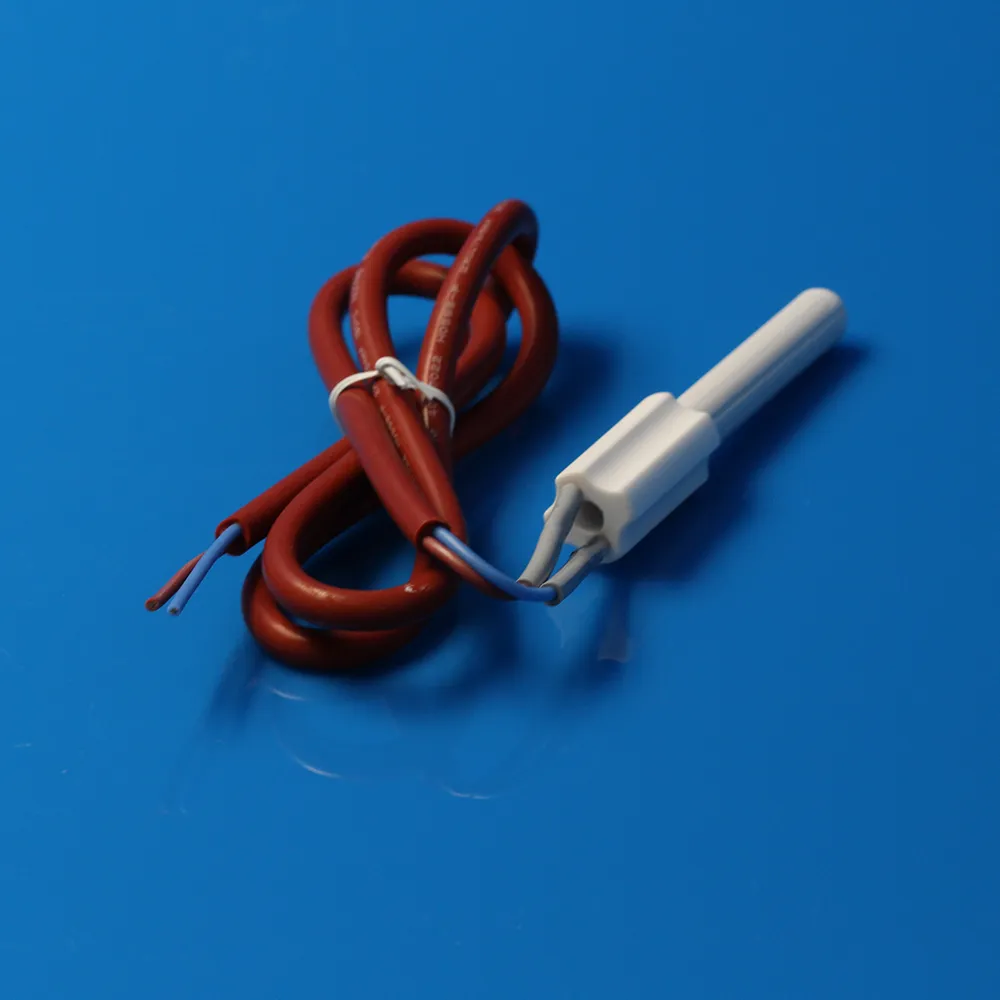

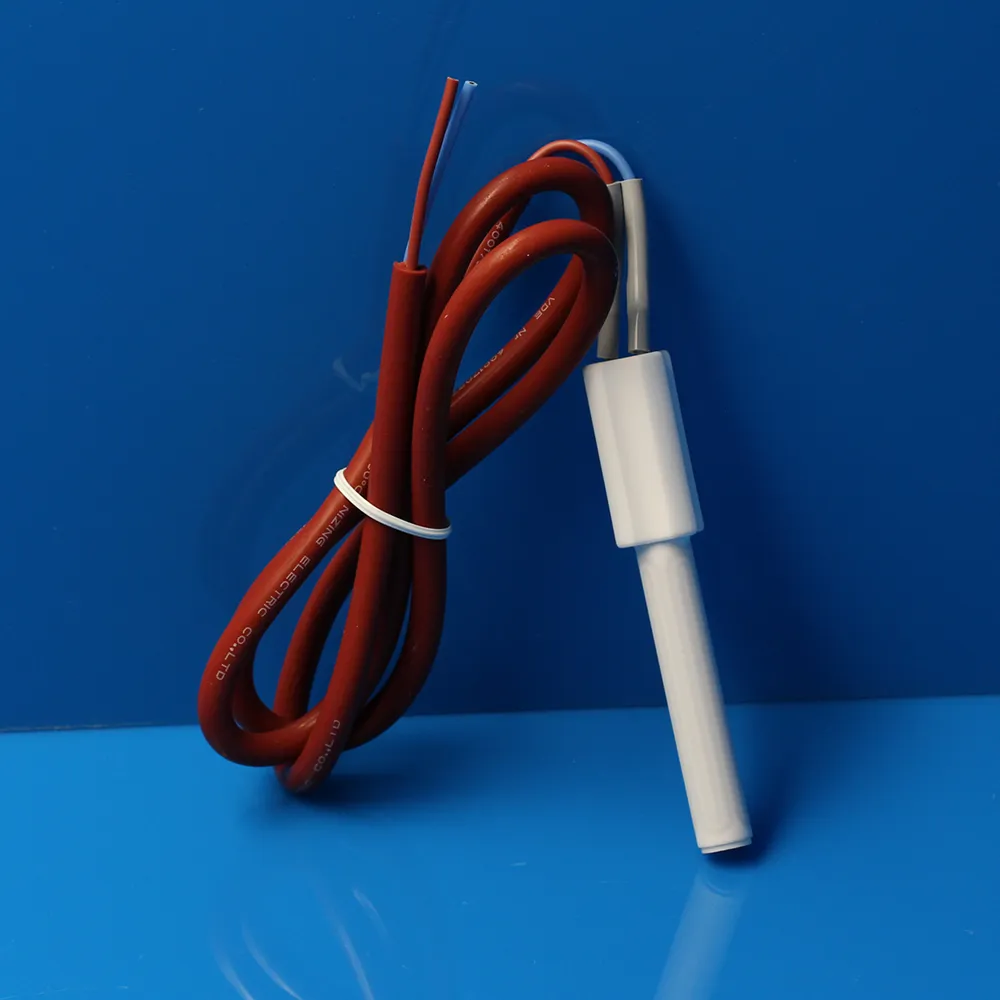

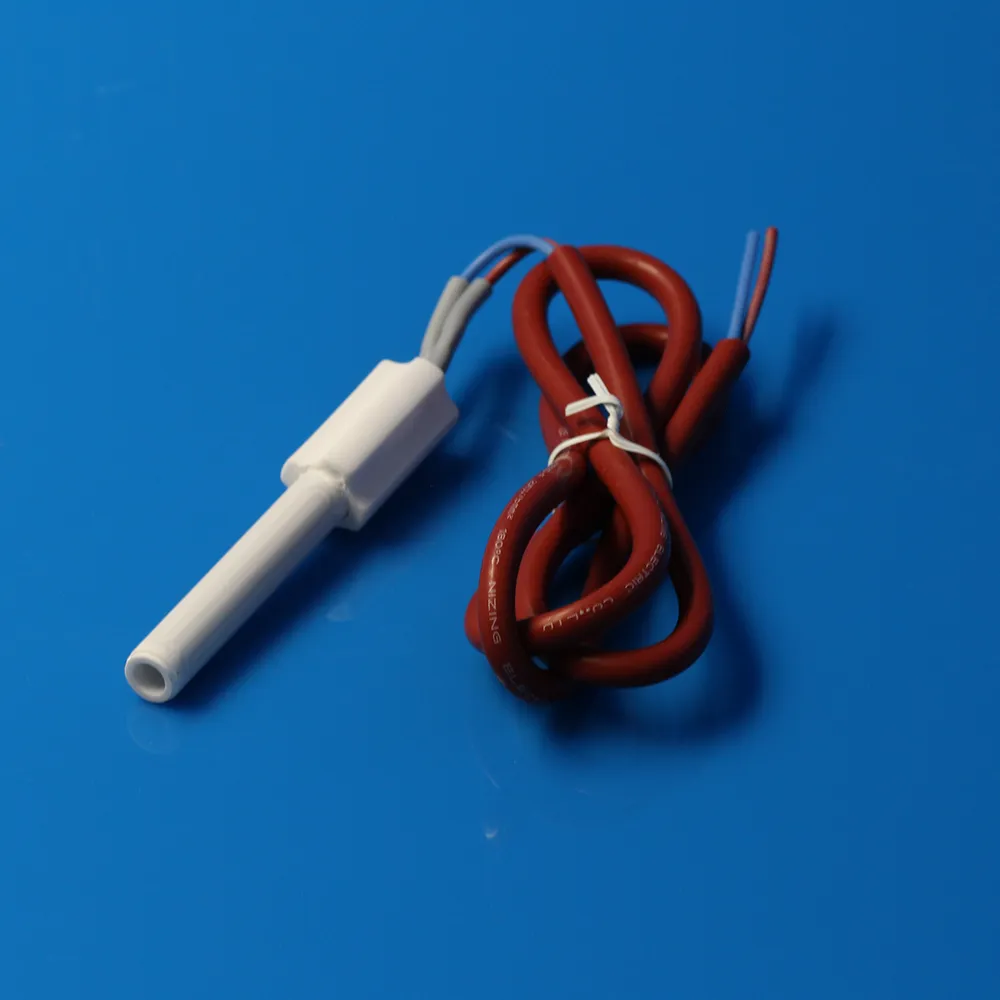

Alumina Ceramic Igniter for Pellet Stove with Detachable Holder, Tube Size OD 10.5 × ID6.5 × L 90 mm
Ceramic hot surface igniters for pellet boilers only need approx. 1/10 of the energy needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 350 W. Depending on the positioning of the ignition element in the boiler, the ignition time of approx 60 seconds is extremely short. This also means minimal emissions.
Ceramic hot surface igniters for pellet boilers only need approx. 1/10 of the energy needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 350 W. Depending on the positioning of the ignition element in the boiler, the ignition time of approx 60 seconds is extremely short. This also means minimal emissions.
Specification:
Voltage: 120V
Power: 230 W
Tube Size: OD10.5 × ID6.5 × L90 mm
Supporting Socket: NO.4/NO.5/NO.6/NO.29
Lead wire: 900mm (Customization is accepted)
Temperature range: 800~1100 °C
Ceramic igniter technology benefits:
A fraction of the energy consumption compared to conventional cartridge or element heaters.
Long-lasting (non-aging).
Time to ignition 60~90 seconds.
Tested to 100,000 cycles.
Easy to install and retrofit.
800~1100°C at steady-state temperature.
Impervious to oxidation and corrosion.
Ignites kerosene, wood chips, split logs, coal briquettes or other biomass, corn, etc.
Applications:
Kerosene fan heater
Wood pellet, wood chips stove or boiler
Small-scale biomass industrial furnace ignition
Incense burner
Shipping & Customs
Your order may require payment of import duties or other customs clearance fees. Please check the notifications from the logistics company or relevant parties and complete the payment in time to prevent the shipment from being returned.
Frequently Asked Questions
A ceramic igniter is used to generate heat to ignite wood pellets during the startup process of a pellet stove or pellet burner. It helps provide reliable and consistent ignition for the fuel.
Alumina ceramic provides good electrical insulation and thermal stability, allowing the igniter to operate reliably at elevated temperatures during repeated pellet stove ignition cycles.
The detachable holder is used to support and position the ceramic heating tube during installation. Its detachable design can also make replacement and maintenance more convenient, depending on the stove configuration.
Compatibility should be confirmed based on the igniter tube dimensions, installation structure, electrical specifications, and mounting position of the pellet stove. Please provide the original igniter dimensions or equipment model before ordering.
Yes. It can be used as a replacement component when its dimensions, electrical specifications, and mounting configuration match the original igniter. Custom dimensions and configurations can also be discussed for specific replacement requirements.
Yes. The ceramic tube dimensions, holder configuration, lead wire arrangement, and other specifications can be customized according to customer drawings, original samples, or specific pellet stove requirements.
