The Silicon Nitride Grinding Vial Set is designed for high-energy ball milling, mechanical alloying, and ultra-fine powder preparation. Manufactured from high-purity silicon nitride (Si₃N₄), the set offers exceptional wear resistance, high fracture toughness, and excellent chemical stability, making it suitable for contamination-sensitive grinding applications. This grinding vial set includes one ceramic grinding jar and one matching ceramic lid, providing an approximate working capacity of 60 mL. Compared with conventional steel or tungsten carbide jars, silicon nitride significantly reduces contamination during milling while maintaining excellent mechanical performance under repeated impact loading.
Product Properties
Downloads & Resources
| Resource Type | Link |
|---|---|
| Technical Data Sheet (TDS) | Silicon Nitride Ceramic Material Properties – SU0011 |
Product Details
The Silicon Nitride Grinding Vial Set is designed for high-energy ball milling, mechanical alloying, and ultra-fine powder preparation. Manufactured from high-purity silicon nitride (Si₃N₄), the set offers exceptional wear resistance, high fracture toughness, and excellent chemical stability, making it suitable for contamination-sensitive grinding applications.
This grinding vial set includes one ceramic grinding jar and one matching ceramic lid, providing an approximate working capacity of 60 mL. Compared with conventional steel or tungsten carbide jars, silicon nitride significantly reduces contamination during milling while maintaining excellent mechanical performance under repeated impact loading.
Its lightweight construction and high hardness allow efficient grinding of advanced ceramic powders, battery materials, electronic materials, and other high-purity samples. The smooth ceramic surface also minimizes material adhesion and simplifies cleaning between milling processes.
Custom dimensions, capacities, and compatible ceramic grinding media are available upon request.
Key Features
- High-purity silicon nitride (Si₃N₄) ceramic
- Approximate capacity: 60 mL
- Excellent wear resistance
- High fracture toughness
- Low contamination during milling
- Outstanding corrosion resistance
- Suitable for high-energy ball milling
- Smooth surface for easy cleaning
- Long service life
- Custom sizes available
Applications
- High-energy ball milling
- Mechanical alloying
- Advanced ceramic powder preparation
- Battery material research
- Electronic ceramic materials
- Powder metallurgy
- Laboratory sample grinding
- Research institutes and universities
Drawing data

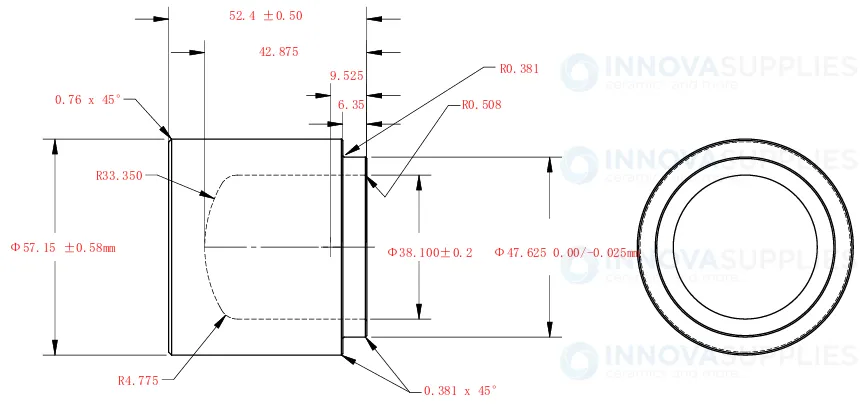

Ceramic Grinding Jar

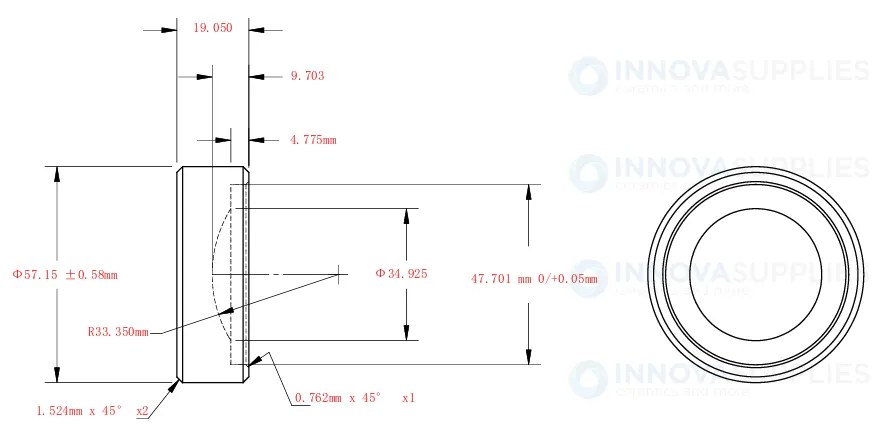

Matching ceramic Lid
Please note that this is a custom-made product with a typical lead time of approximately 30 days. If delivery time is critical for your project, please consider this before placing your order.
Shipping & Customs
Your order may require payment of import duties or other customs clearance fees. Please check the notifications from the logistics company or relevant parties and complete the payment in time to prevent the shipment from being returned.
Frequently Asked Questions
Silicon nitride offers excellent wear resistance, high fracture toughness, low contamination, and outstanding corrosion resistance. It is an ideal choice for high-purity powder processing where minimizing sample contamination is critical.
The grinding vial set is suitable for many laboratory and planetary ball mills. Compatibility depends on the mounting dimensions and clamping system of the equipment, so please verify the specifications before ordering.
It is commonly used for grinding ceramic powders, battery materials, electronic materials, minerals, advanced functional materials, and other contamination-sensitive samples in laboratory and research environments.
Yes. Custom capacities, dimensions, wall thicknesses, and matching ceramic lids can be manufactured according to customer drawings or specific application requirements.
Yes. This product is supplied as a complete set including one silicon nitride ceramic grinding jar and one matching ceramic lid for secure operation during milling.
The grinding vial should be cleaned promptly after each milling cycle using appropriate cleaning methods based on the processed material. Thorough cleaning helps prevent cross-contamination and maintains consistent milling performance.
